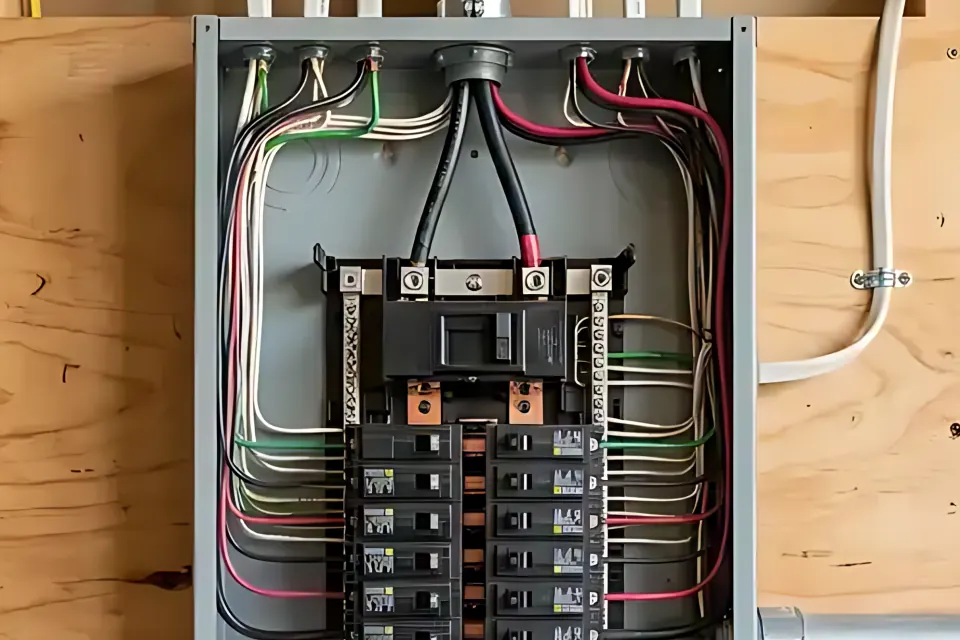

Check whether you have 60A, 100A or 200A now
Read the number stamped on the main top breaker handle (60, 100, 150 or 200) and check the door label for Federal Pacific Stab-Lok or Zinsco brands.
Home › Electrical panel upgrade
100A to 200A / 400A · Breaker box & serviceElectrical panel upgrade cost calculator
Price a breaker box replacement or a full 100-amp to 200-amp (or 400-amp) electrical service upgrade: main load center, utility meter socket, weatherhead mast or underground conduit, grounding rods, and NEC code AFCI/GFCI breakers.
Reviewed 25 October 2026 · Written by Mantu Kumar
Written and maintained byMantu Kumar
Evidence review14 October 2026
Calculation rulesRead the methodology
Quality standardEditorial policy
Key facts at a glance
- Swapping an indoor 200A breaker box alone runs $1,500–$2,600; a full 100A-to-200A service upgrade (new meter base, mast and grounding) averages $2,800–$4,800.
- Upgrading to 400-amp service (dual 200A panels for all-electric HVAC, tankless water heater and EV charging) runs $5,200–$9,800.
- Replacing hazardous legacy panels—Federal Pacific (FPE Stab-Lok), Zinsco, Pushmatic or 60A fuse boxes—is often required before insurers will bind or renew coverage.
- Current NEC code requires AFCI/GFCI combination breakers ($45–$75 each), whole-home surge protection (NEC 230.67) and an exterior emergency disconnect (NEC 230.85).
- Underground service trenching adds $18–$45 per linear foot if the utility requires upsizing buried conduit.
Sources: NFPA 70 National Electrical Code (NEC), U.S. Consumer Product Safety Commission (CPSC), and 2026 electrical contractor benchmarks.
2026 planning ranges
- 1Mast & weatherhead (utility side)
- 2New meter base
- 3Exterior emergency disconnect
- 4Panel swap only · $1,500–$2,600
- 5Whole-home surge protector
- 6Ground rods & bonding
- 7New 240V circuit (EV, heat pump)
- 8Permit + utility
- 9Circuits reconnected
100A → 200A service: Overhead $2,800–$4,800 Underground $3,800–$7,200 400A dual panels $5,200–$9,800
Electrical panel & service upgrade cost estimator
No email · nothing sentDiagram, part by part
Electrical panel upgrade: every numbered part explained
The electrical panel upgrade drawing above has 9 numbered parts, from Mast & weatherhead (utility side) to Circuits reconnected. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.
1 Mast & weatherhead (utility side)
The mast and weatherhead bring the utility wires to the house on an overhead service. A larger service usually needs a new mast and heavier service wires, and the utility must disconnect and reconnect power.
What moves it: Overhead or underground service and the distance to the meter.
On the quote: Ask whether the utility reconnect is scheduled by the electrician and included.
2 New meter base
Part of the service upgrade
A larger service usually needs a new meter base rated for the higher amperage. The utility sets the rules and inspects the base before setting the meter.
What moves it: Service size and your utility's requirements.
On the quote: Ask whether the meter base meets your utility's current spec.
3 Exterior emergency disconnect
Many recent codes require an exterior emergency disconnect so firefighters can cut power from outside. Underground services may need trenching and new conduit to reach it.
What moves it: Your local code adoption and how the service enters the house.
On the quote: Ask whether an exterior disconnect is required in your town.
4 Panel swap only
$1,500–$2,600
Swapping the panel replaces the box and breakers on the existing service. Moving the panel, adding a subpanel or upsizing the service adds cost.
What moves it: Panel size, location and number of circuits.
On the quote: Ask for the panel brand and the number of breaker spaces.
5 Whole-home surge protector
A whole-home surge protector at the panel guards appliances and electronics from spikes, and newer codes require it on service changes.
What moves it: The protector type and rating.
On the quote: Ask for the surge protector type, rating and warranty.
6 Ground rods & bonding
Part of the service upgrade
Ground rods driven outside and bonding jumpers to water and gas pipes give fault current a safe path so breakers trip.
What moves it: Soil, rod count and existing bonding.
On the quote: Ask whether ground rods and bonding are brought up to current code.
7 New 240V circuit
$420–$950
A new 50 or 60 amp 240-volt circuit feeds a Level 2 EV charger or a heat pump. Adding it during the panel upgrade saves a second visit and confirms the new panel has room.
What moves it: Circuit size and the distance from the panel.
On the quote: Ask for wire size, breaker size and the route of the new circuit.
8 Permit and utility coordination
$180–$480
A panel or service change needs an electrical permit and inspection, and the utility must cut and restore power. Coordinating those dates is part of the electrician's job.
What moves it: Your town and utility.
On the quote: Ask who schedules the inspection and the utility disconnect and reconnect.
9 Circuits reconnected
Labor scales with circuit count
Every branch circuit is moved from the old panel to the new one, labeled and tested. Older homes with many small circuits or messy wiring take longer to reconnect.
What moves it: The number of circuits and the condition of the old wiring.
On the quote: Ask for a labeled panel directory when the job is done.
Inside and outside the wall
Why a '200-amp upgrade' is three separate pieces of equipment
A true amperage upgrade replaces more than the gray breaker box inside your garage or basement—it also upgrades the utility meter socket, service entrance conductors, and grounding electrode system.
Three close-ups from the photo above, and what each one means for an electrical panel upgrade quote. These close-ups are crops of the same AI-generated illustration.

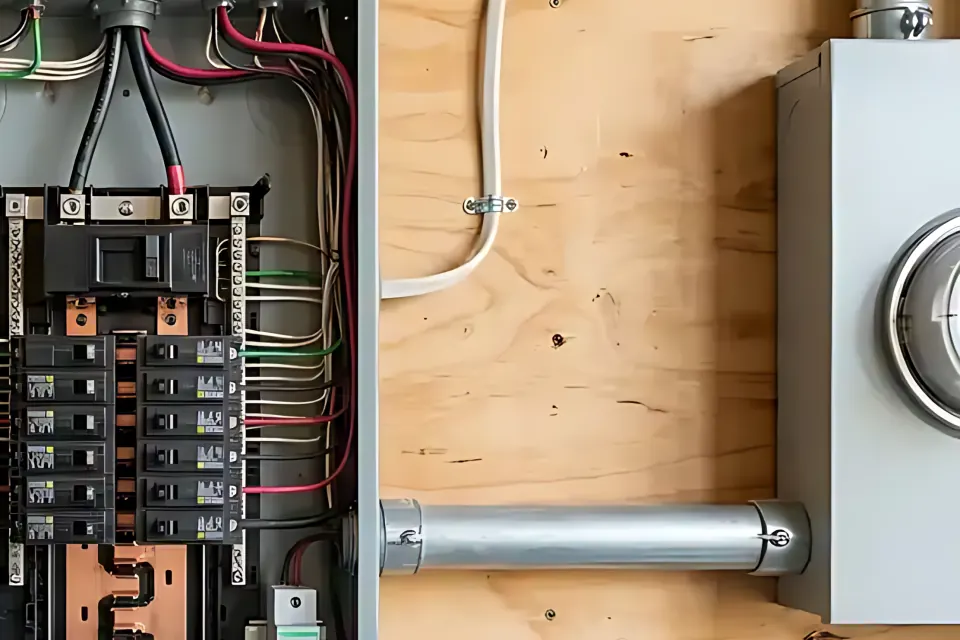

Overhead mast vs underground conduit
Overhead drops require a new weatherhead, rigid mast and 200A meter socket; underground service may require trenching if the existing buried conduit is too small for 4/0 wire.

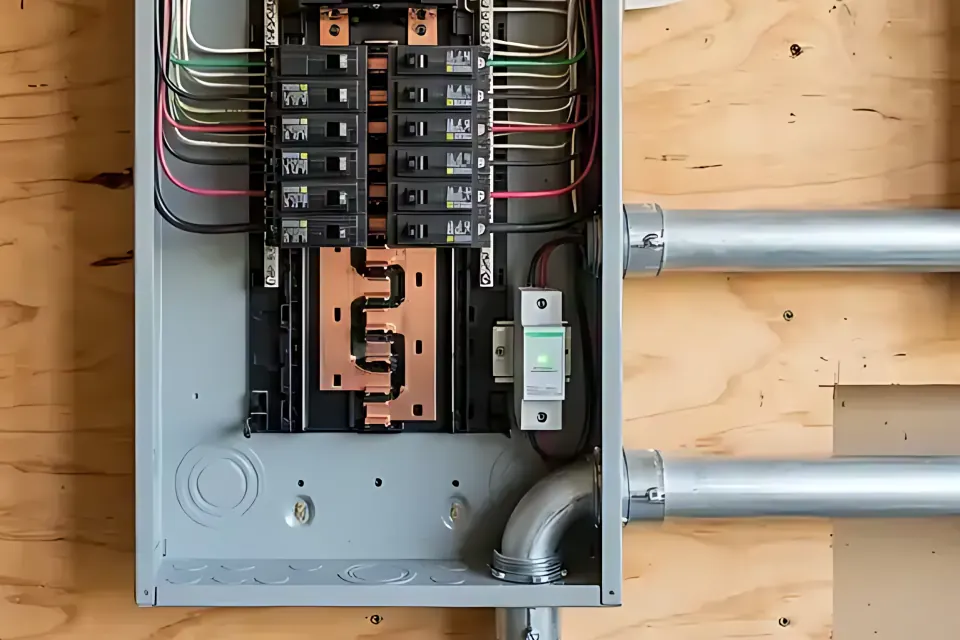

Count AFCI breakers and new 240V loads
Modern code requires an exterior emergency disconnect, a Type 1 or 2 surge protector, and dedicated 240V circuits for heat pumps, EV chargers or solar backfeed.
Before you sign a quote or file a claim, verify these three details
- Utility coordination
- Whether the electrician pulls the municipal permit and schedules the utility power disconnect/reconnect
- Exterior disconnect
- Whether the quote includes an NEC 230.85 exterior meter-main or emergency disconnect switch
- Breaker schedule
- How many new AFCI/GFCI breakers and open spaces (40-space vs 30-space panel) are included
On this page
- Cost by amperage & scope
- FPE, Zinsco & insurance rules
- Electrical panel upgrade cost by region
- What “Upgrade scope & amperage” does to the price
- What “Utility service feed” does to the price
- How age changes the electrical panel upgrade claim payout
- Quote checklist: 7 items to verify
- How long the job takes
- Ways to keep the cost down
- Sources and further reading
- Frequently asked questions
Electrical panel replacement and upgrade cost by amperage (2026)
The biggest price difference in an electrical panel quote is whether your existing utility service entrance cables and meter socket are already rated for 200 amps. Replacing a corroded 200A breaker box on an existing 200A service takes one electrician 4 to 6 hours; upgrading a 60A or 100A home to 200A requires replacing the exterior meter base, service mast, main feeder cable, and dual copper ground rods, plus coordinating a utility company shutoff.
| Project Scope | Equipment & Materials | Licensed Electrician Labor & Permit | Total Installed Range |
|---|---|---|---|
| Subpanel Addition (60A–100A, 12–24 spaces) | $250 – $550 | $550 – $1,250 | $800 – $1,800 |
| 200A Panel Swap Only (Existing 200A Service) | $550 – $1,050 | $950 – $1,550 | $1,500 – $2,600 |
| Full 100A to 200A Upgrade (Overhead Service) | $1,100 – $1,900 | $1,700 – $2,900 | $2,800 – $4,800 |
| Full 100A to 200A Upgrade (Underground Trench) | $1,400 – $2,600 | $2,400 – $4,600 | $3,800 – $7,200 |
| 200A to 400A Heavy Service (Dual 200A Panels) | $2,400 – $4,200 | $2,800 – $5,600 | $5,200 – $9,800 |
Why insurers force replacements of Federal Pacific (FPE) and Zinsco panels
Homeowners insurance underwriters routinely inspect electrical panels during policy binding or 4-point home inspections. Four legacy designs trigger immediate non-renewal or a mandatory 30-to-60-day replacement notice:
- Federal Pacific Electric (FPE) Stab-Lok Panels (1950s–1980s): Independent testing showed high failure-to-trip rates on overcurrent and jammed two-pole breakers.
- Zinsco / GTE-Sylvania Panels: Aluminum busbars corrode and arc against clip-on breakers, melting the breaker to the busbar so it cannot trip.
- 60-Amp Edison Screw-In Fuse Boxes: Frequently over-fused with 30-amp pennies or fuses on 14-gauge wiring, creating severe attic and wall fire hazards.
- Split-Bus Panels without a Single Main Disconnect: Require throwing up to six separate breakers to de-energize the house.
While standard homeowners insurance does not pay to replace an outdated FPE or Zinsco panel as routine maintenance, it does cover sudden electrical surge damage, lightning strikes, or a falling tree limb that rips the service mast and meter socket off the house wall (under Coverage A Dwelling).
Do you need 200 amps or 400 amps? NEC load calculation benchmarks
Before paying for an electrical service upgrade, check what total amperage your home's appliances actually draw under an NEC Article 220 Standard or Optional Load Calculation. Many 1,600-to-2,400 sq ft homes with gas heating and gas water heaters run comfortably on a 100-amp panel, whereas electrifying heating, hot water, and vehicle charging quickly pushes a home to 200 amps or 400 amps:
| Home Appliance Profile | Continuous & Peak Demand | Recommended Service | Why This Size Fits |
|---|---|---|---|
| Gas Furnace + Gas Water Heater + Gas Range + Central AC | 65A – 95A | 100A – 150A (200A if upgrading) | Major thermal loads burn natural gas; only central AC (30A) and dryer (30A) draw heavy 240V current. |
| Heat Pump HVAC + Heat Pump Water Heater + Induction Range + 1 EV Charger (48A) | 135A – 175A | 200-Amp Service | Standard modern electrification package; fits cleanly on a 40-space 200A panel (or with an EV load manager). |
| Large All-Electric Home (3,500+ sq ft) + Dual HVAC + Electric Tankless Water Heater + 2 EVs | 240A – 340A | 400-Amp Service (Dual 200A) | Electric tankless water heaters alone draw 120A–150A at 240V, requiring a 320A/400A meter base and two 200A panels. |
How to avoid an unnecessary $6,000 400-amp upgrade (EV load management & heat pump water heaters)
Two code-approved equipment choices frequently save homeowners $3,000 to $5,500 by keeping an all-electric home within a standard 200-amp service (or even avoiding a 100A-to-200A trenching job):
- Choose a Heat Pump Water Heater (15A–30A) Instead of an Electric Tankless Unit (120A–150A): A whole-house electric tankless water heater requires three or four dedicated 40-amp double-pole breakers, almost always forcing a 200A-to-400A service upgrade. A hybrid heat pump storage water heater uses a single 30-amp circuit (or a 15-amp 120V plug-in circuit) and uses 65% less electricity.
- Use an UL-Listed Automatic EV Energy Management System (NEC 625.42): Smart load-shedding relays ($350 to $650) monitor the main service lugs with current transformers (CTs) and pause the 48-amp EV charger for 20 minutes only when the oven, dryer, and heat pump run simultaneously—allowing a Level 2 EV charger to pass inspection on an existing 100A or 200A panel.
Worked example: 100 amp to 200 amp, overhead
Two different jobs are easy to mix up. A breaker-box swap does not raise the amps coming into the house. The figures below are the ones already published on this page.
Full service upgrade, not a breaker-box swap
Worked example| Indoor 200A breaker box only | $1,500 – $2,600 |
| 100A to 200A overhead: panel, meter, mast, ground | $2,800 – $4,800 |
| Same upgrade, underground trench | $3,800 – $7,200 |
| 200A to 400A, dual panels | $5,200 – $9,800 |
| Each AFCI/GFCI breaker | $45 – $75 |
| Most overhead upgrades land at | $2,800 – $4,800 |
A heat pump, a Level 2 EV charger or a tankless water heater is what pushes a 100A service into this example. Underground work is priced per foot of trench ($18 – $45), which is why that row is not a flat city fee. Insurance often asks for a Federal Pacific, Zinsco, Pushmatic or fuse panel to be replaced before it will renew — that is a coverage condition, not a rebate.
Electrical panel upgrade cost by region
The calculator's default electrical panel upgrade job, repriced for each of its six regions. At the national average it runs $3,614 – $6,546; South / Lower Midwest is the lowest at $3,168 – $5,757, and West Coast metro is the highest at $4,644 – $8,366, a gap of about $2,042 at the midpoint.
| Region | Planning range | Midpoint |
|---|---|---|
| National average | $3,614 – $6,546 | $5,080 |
| South / Lower Midwest | $3,168 – $5,757 | $4,462 |
| Mountain / Plains | $3,442 – $6,243 | $4,842 |
| Mid-Atlantic / Upper Midwest | $4,026 – $7,274 | $5,650 |
| Northeast metro | $4,507 – $8,123 | $6,315 |
| West Coast metro | $4,644 – $8,366 | $6,505 |
What “Upgrade scope & amperage” does to the price
Every other input stays at its default and only “Upgrade scope & amperage” changes. The cheapest choice, Add 60A–100A subpanel (existing service has capacity), comes to $2,064 – $4,196; the most expensive, 200A to 400A service upgrade (dual 200A panels), comes to $5,914 – $10,846.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Full 100A to 200A service upgrade (panel + meter base + mast) (default) | $3,614 – $6,546 | — |
| 200A breaker panel swap only (existing 200A service entrance) | $2,714 – $4,996 | −$1,225 |
| 200A to 400A service upgrade (dual 200A panels) | $5,914 – $10,846 | +$3,300 |
| Add 60A–100A subpanel (existing service has capacity) | $2,064 – $4,196 | −$1,950 |
What “Utility service feed” does to the price
Every other input stays at its default and only “Utility service feed” changes. The cheapest choice, Overhead drop (weatherhead & roof/wall mast), comes to $3,614 – $6,546; the most expensive, Underground trench & new conduit required (+35 ft), comes to $4,564 – $8,746.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Overhead drop (weatherhead & roof/wall mast) (default) | $3,614 – $6,546 | — |
| Underground feed (existing conduit fits 200A wire) | $3,614 – $6,546 | −$0 |
| Underground trench & new conduit required (+35 ft) | $4,564 – $8,746 | +$1,575 |
How age changes the electrical panel upgrade claim payout
Using the default job, a $1,500 deductible and a 40-year expected life. At 10 years old, about $1,270 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.
| Age | Wear | First check | Held back |
|---|---|---|---|
| 2 years | 5% | $3,326 | $254 |
| 5 years | 12% | $2,945 | $635 |
| 10 years | 25% | $2,310 | $1,270 |
| 15 years | 38% | $1,675 | $1,905 |
| 20 years | 50% | $1,040 | $2,540 |
| 30 years | 75% | $0 | $3,810 |
Quote checklist: 7 items to verify
Panel quotes are easiest to compare with the same service size and scope.
- Service size. Amps and panel brand with breaker spaces.
- Service parts. Meter base, mast or underground conduit.
- Disconnect. Exterior emergency disconnect where required.
- Grounding and bonding. Rods and bonding brought to code.
- Surge protection. Type and rating.
- Circuits. Number moved and labeled.
- Permit and utility. Permit, inspection and utility disconnect and reconnect.
How long the job takes
| Stage | Typical time | What happens |
|---|---|---|
| Site visit and load check | 1 hour | Service and panel reviewed. |
| Permit and utility scheduling | 1 – 4 weeks | Utility must cut power. |
| Panel swap | 6 – 10 hours | Power off for most of a day. |
| Inspection and reconnect | Same day – 3 days | Utility restores service after inspection. |
Plan for refrigerators and medical devices on the swap day; power is usually off for most of the day.
Ways to keep the cost down
Panel costs depend on service size and scope.
- Plan future loads. One upgrade.
- Combine with EV or heat pump circuits. One permit.
- Use load management. Avoid service upgrades.
- Check utility programs. Rebates.
- Schedule early. Utility coordination.
- Keep the panel location. Less rework.
Sources and further reading
- NFPA — National Electrical Code publisher
- Electrical Safety Foundation International
- BLS — Producer price index for construction inputs
Frequently asked questions
How much does it cost to upgrade from a 100-amp to a 200-amp electrical panel?
A full 100-amp to 200-amp overhead service upgrade typically costs $2,800 to $4,800 installed, including a 40-space 200A load center, new exterior utility meter socket, weatherhead mast, grounding rods, AFCI/GFCI breakers, whole-home surge protector, municipal permit, and utility company reconnect.
When do I need a 200-amp panel upgrade instead of a subpanel?
A subpanel only adds physical breaker slots—it does not increase the total electrical capacity entering your home. If your main breaker is 60A or 100A and you are adding a central heat pump, a Level 2 (40A–60A) EV charger, an electric tankless water heater, or solar panels, an NEC load calculation almost always requires upgrading the main service to 200 amps.
Does homeowners insurance cover replacing an electrical panel?
Homeowners insurance covers electrical panel replacement only when the panel or exterior service mast is damaged by a sudden covered peril—such as lightning, a utility voltage surge, a fallen tree limb pulling down the service drop, or a sudden water pipe burst above the panel. Replacing an aged, rusted, or recalled FPE/Zinsco panel is homeowner maintenance.
Why does NEC code make modern panel replacements cost more?
Recent editions of the National Electrical Code (NEC 2020 and 2023) require an exterior emergency disconnect switch (NEC 230.85) for firefighters, a whole-home surge protective device (NEC 230.67), two grounding rods, and AFCI/GFCI breakers ($45 to $75 each compared to $8 for standard thermal-magnetic breakers).
How long does a 200-amp panel upgrade take and how long is power off?
A licensed electrician and apprentice usually complete a 100A-to-200A upgrade in 6 to 10 hours (one full workday). Household power is typically shut off for 4 to 7 hours until the municipal inspector signs off and the utility reconnects the drop.
Can I add a subpanel instead of upgrading?
A subpanel adds breaker spaces but not service capacity. If the load calculation shows the service is near its limit, the service itself needs upgrading.
Should a Zinsco or Federal Pacific panel be replaced?
Many electricians and home inspectors recommend replacing Zinsco and Federal Pacific Stab-Lok panels, because some of their breakers have been reported to fail to trip during an overload. Many insurers also ask about these brands and may surcharge or decline a policy until the panel is replaced. A swap is priced like any other like-for-like panel replacement in the calculator above, and the service upgrade lines apply if you move to 200 amps at the same time.
Related planning tools
Next steps for your estimate
Electrical panel upgrade jobs rarely stop at one trade. These are the calculators people open next.
Code upgrade calculatorWhen a repair triggers panel upgrades.
Solar panel cost & payback calculator
Check whether your roof solar array needs a 200A or 225A solar-ready busbar.
HVAC & heat pump cost calculator
Estimate heat pump and electric air handler installation costs.
Tank & tankless water heater calculator
See why electric tankless units often require 150A–200A of panel capacity.
Repair or replace calculator
Test whether an older home system should be repaired or replaced outright.
Home rebuild cost calculator
Check Coverage A dwelling limits and Ordinance or Law code-upgrade coverage.
ACV vs RCV claim gap calculator
Calculate how depreciation affects an electrical surge or tree-strike claim.
Well pump & pressure tank calculatorPrice the pump circuit and pressure tank.EV charger installation calculatorLevel 2 charging and panel capacity.
Key topics covered
Common questions answered on this page
Direct planning topics covered in the calculator and guide above.
100 amp to 200 amp panel upgrade costelectrical panel replacement cost calculatorbreaker box replacement cost 2026federal pacific zinsco panel replacement cost200 amp service mast and meter base cost400 amp electrical service upgrade costcost to add subpanel and EV charger circuitdoes insurance cover electrical panel replacement
200 amp panel upgrade cost100 amp to 200 amp upgrade costcost to upgrade 100 amp to 200 amp serviceupgrade to 200 amp service cost200 amp panel install cost200 amp sub panel cost400 amp service upgrade costcost to replace 100 amp panelhow much does it cost to upgrade breaker panelelectrical panel replacement pricecost to replace zinsco electrical panelzinsco panel replacement costhow much to replace a zinsco panelcost to upgrade electrical panel to 200 ampsconvert 100 amp to 200 amp costcost to replace 100 amp panel with 200 amp200amp panel costhow much does it cost to upgrade 100 amp to 200 ampupgrading electrical panel from 100 to 200 cost
