Septic tank & drain field replacement cost calculator

Replacing a failed septic tank alone runs $3,800 to $8,500, while replacing both the tank and a clogged leach drain field runs $7,500 to $16,500 for a conventional gravity system—or $14,000 to $28,000+ if clay soil or a high water table requires an engineered sand mound or aerobic treatment unit (ATU).

Reviewed 25 October 2026 · Written by Mantu Kumar

See the illustrated inspection guide · Interactive system diagram

Written and maintained byMantu Kumar

Evidence review16 October 2026

Calculation rulesRead the methodology Quality standardEditorial policy

Key facts at a glance

Septic tank replacement only (1,000–1,500 gal precast concrete or poly) runs $3,800–$8,500 including pump-out and crushing/removing the old tank.
Leach drain field replacement only (gravel trenches or Infiltrator chambers) runs $4,500–$12,500.
Complete conventional gravity septic system (tank + D-box + drain field) runs $7,500–$16,500 for a 3-to-4-bedroom home.
Engineered raised sand mound or Aerobic Treatment Unit (ATU) runs $14,000–$28,000+ when soil percolation fails or bedrock/groundwater is shallow.
Soil percolation ('perc') testing & county health permit add $600–$2,200 before excavation begins.

Sources: U.S. EPA Decentralized Wastewater (Septic) Guidelines, county health department perc/setback codes, and 2026 septic excavation benchmarks.

2026 planning ranges

1Two-compartment tank · risers & filter
2Distribution box
3Leach trenches in stone
4Pump chamber & alarm (dosed)
5Sand mound or ATU for poor soil
6Perc test, design & permit
7Bedrooms set the size
8Slow or rocky soil
9Pumping every 3–5 years

Typical installed: Tank only $3,800–$8,500 Conventional $7,500–$16,500 Mound / ATU $14,000–$28,000+

Septic anatomy: the tank does the settling, the field does the treating. Tank-only replacements are a few thousand dollars; the field and the soil it sits in are what move a full system from $7,500 to $28,000.Planning illustration for checking a quote’s scope. Not an engineering or construction drawing.

Septic tank & leach drain field cost estimator

No email · nothing sent

Diagram, part by part

Septic tank & drain field replacement: every numbered part explained

The septic tank & drain field replacement drawing above has 9 numbered parts, from Two-compartment tank to Pumping and inspections. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.

1 Two-compartment tank
risers & filter
The tank holds wastewater long enough for solids to settle and scum to float. Two compartments, risers to the surface and an effluent filter keep solids out of the field and make pumping easier.
What moves it: Tank size, material and the number of bedrooms.
On the quote: Ask for tank size in gallons and whether risers and an effluent filter are included.
2 Distribution box
The distribution box splits flow evenly among the drain field lines. A tilted or settled box overloads one trench and makes it fail early.
What moves it: The number of field lines.
On the quote: Check that the box is set level on a solid base.
3 Leach trenches in stone
The drain field, or leach field, is trenches of stone and pipe or plastic chambers where effluent soaks into the soil and is treated by it.
What moves it: Trench length, soil and the number of bedrooms.
On the quote: Ask for trench length and whether stone or chambers are used.
4 Pump chamber & alarm (dosed)
When the field sits higher than the tank, a pump chamber doses effluent uphill on a timer or float, with an alarm if the pump fails.
What moves it: Lift height, distance and the pump.
On the quote: Check where the alarm is mounted and who services the pump.
5 Sand mound or ATU for poor soil
Poor soils or high water tables need a sand mound built above the ground or an aerobic treatment unit, which cost much more and need regular service.
What moves it: Soil test results and the water table.
On the quote: Ask why it is needed and what the yearly service costs.
6 Perc test, design & permit
A perc test measures how fast the soil drains, a designer or engineer lays out the system and the county health department issues the permit and inspects.
What moves it: County rules and the site.
On the quote: Confirm who designs the system and pulls the permit.
7 Bedrooms set the size
Up to +38% for 5+ bedrooms
Codes size the tank and drain field by the number of bedrooms, not the number of people. A four- or five-bedroom house needs a larger tank and longer trenches.
What moves it: The number of bedrooms on record.
On the quote: Ask what tank size and field length the county requires for your bedroom count.
8 Slow clay or rocky soil
About 22% more
Clay soils drain slowly, so the field must be larger. Rock and roots slow digging and may call for a different system.
What moves it: Perc test results and what the excavator finds.
On the quote: Ask how soil conditions changed the design and price.
9 Pumping and inspections
Ongoing upkeep
Most tanks need pumping every three to five years, depending on size and use. Regular pumping keeps solids from reaching the drain field, which is the most expensive part to replace.
What moves it: Tank size and household size.
On the quote: Ask for a pumping schedule and keep the service records.

Tank vs absorption field

Separate a $5,200 tank or baffle replacement from an $18,000 drain field failure

When a septic inspection fails during a home sale or sewage backs up into the basement, find out immediately whether the problem is inside the tank (a broken concrete outlet baffle, rusted steel tank, or crushed inlet pipe) or out in the soil absorption field (biomat saturation).

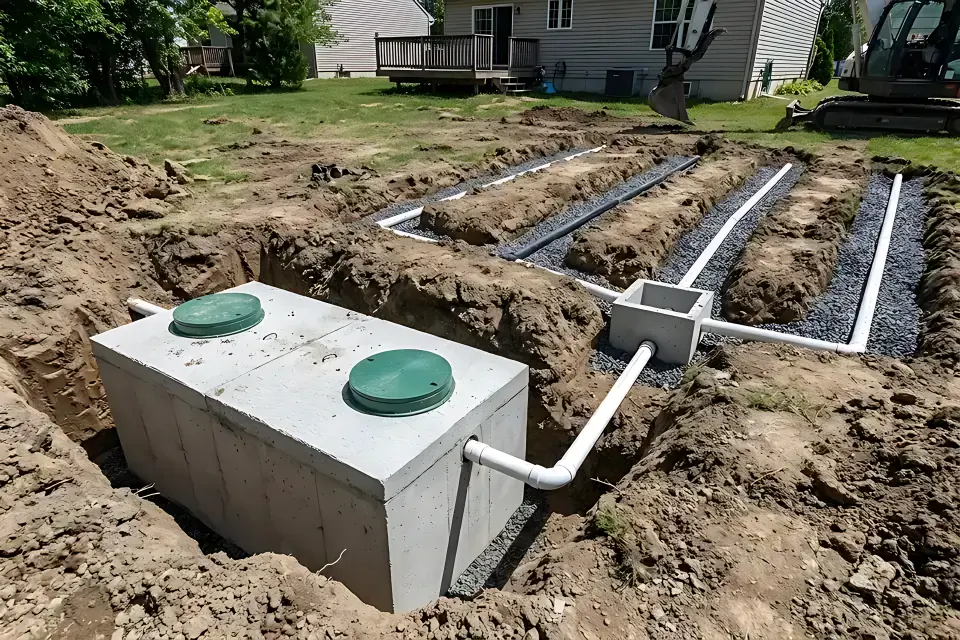

Residential backyard septic system replacement showing a precast two-compartment concrete septic tank with green access risers connected to a concrete distribution box and parallel gravel leach drain field trenches. — A modern conventional septic replacement sets a two-compartment precast concrete tank with ground-level risers, routes clarified liquid through a leveled distribution box, and disperses it across parallel gravel trenches.AI-generated illustration for explanation. Not a site inspection, engineering report or coverage decision.

Three parts of the same picture, each tied to a line on a septic tank & drain field estimate. These close-ups are crops of the same AI-generated illustration.

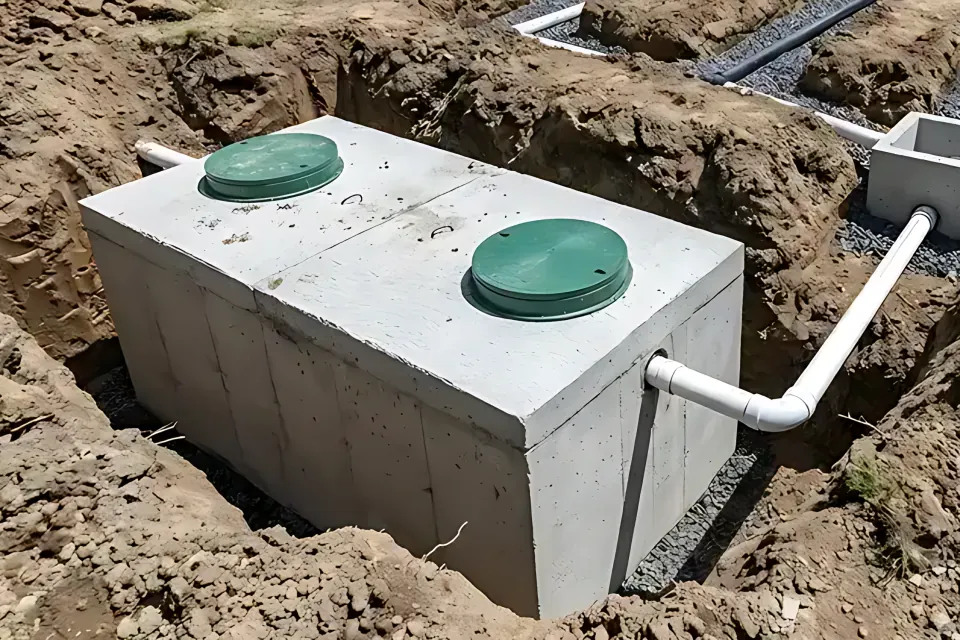

Step 1: Inspect precast two-compartment concrete septic tank and green ground-level access risers.

Tank size & risers

Require 2 compartments & grade risers

County codes typically size tanks by bedroom count: 1,000 gallons for 1–3 bedrooms and 1,250 to 1,500 gallons for 4–5 bedrooms. Always specify watertight green PVC risers to grade.

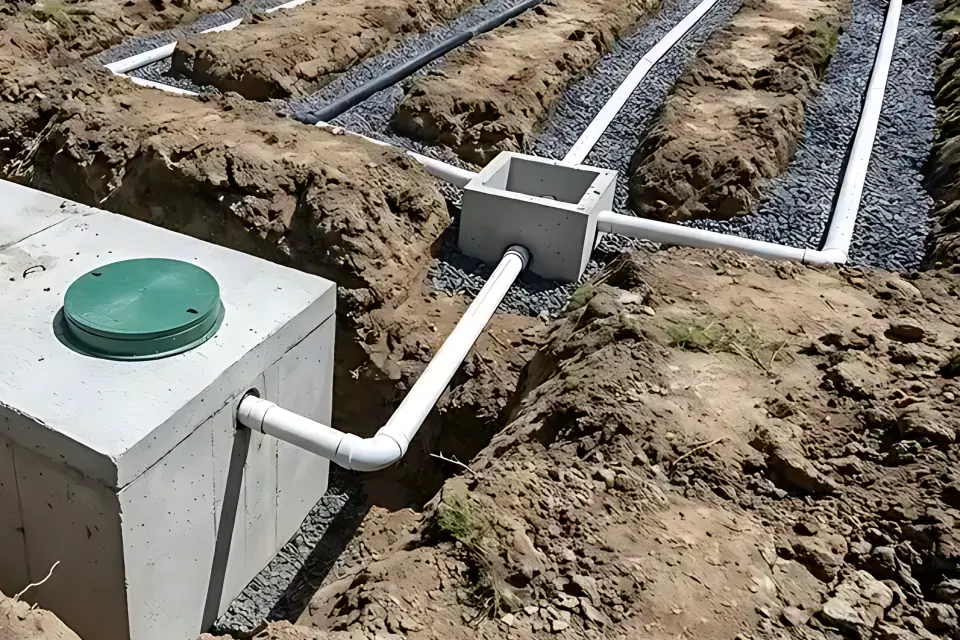

Step 2: Verify outlet tee effluent filter and concrete distribution box (D-box) with speed levelers.

Effluent filter & D-box

Check if a tilted D-box overloaded one trench

Sometimes a drain field looks 'failed' only because frost shifted the concrete distribution box (D-box), sending 100% of household water down a single trench ($650–$1,450 fix).

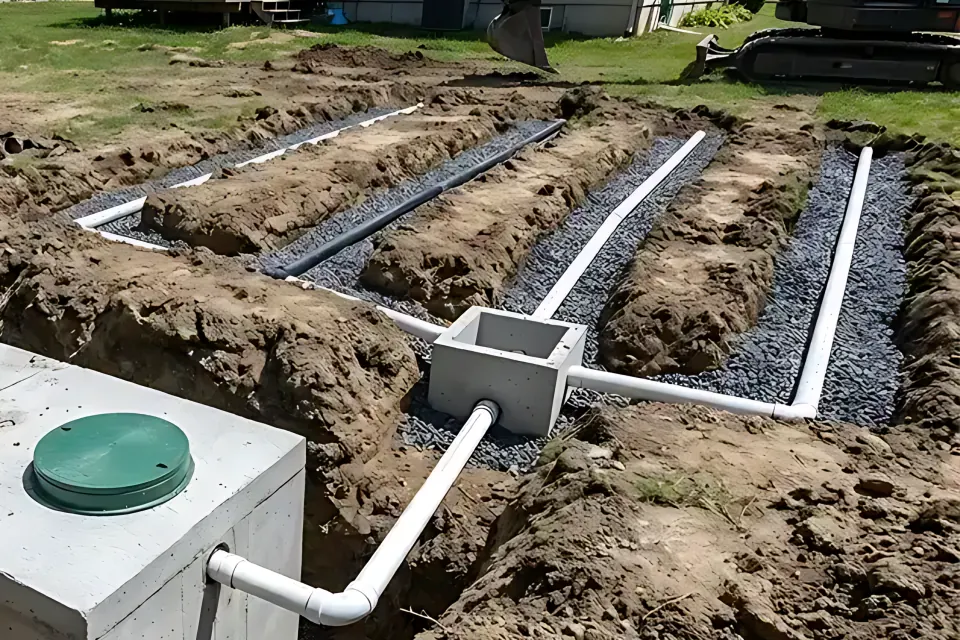

Step 3: Compare washed-stone gravel trenches, plastic leach chambers, and engineered sand mounds.

Soil perc & field type

Perc rate decides conventional vs mound

If your soil percolates at 5 to 45 minutes per inch with 3–4 ft of dry soil above groundwater, a gravity gravel or chamber field works ($4,500–$12,500). Heavy clay or high water tables require a dosed sand mound or ATU ($14,000–$28,000+).

Before you sign a quote or file a claim, verify these three details

Tank material & water table: Whether a precast concrete tank (best against buoyant groundwater flotation) or ribbed HDPE/fiberglass tank is specified
Old tank decommissioning: Whether the quote includes pumping, crushing the top/bottom of the old abandoned tank, and compacting clean fill sand per county health code
Reserve replacement area: Whether the county health permit preserves your 100% reserve drain field area and keeps heavy excavators from driving over active leach soil

Only replacing the pipe from the house to the tank? Open the Sewer Line Cost Calculator →

2026 septic system replacement cost by system type
Septic tank size & cost by bedroom count (1,000 to 2,000 gal)
Worked example: 4-bedroom conventional gravity septic replacement
Homeowners insurance exclusions & EPA/USDA septic grants
Septic system replacement cost by region
What “Septic replacement scope” does to the price
What “Home size (bedrooms — sets code tank & field size)” does to the price
How age changes the septic system replacement claim payout
Quote checklist: 7 items to verify
How long the job takes
Common mistakes that raise the cost
Ways to keep the cost down
Signs your septic is failing
Sources and further reading
Frequently asked questions

Septic system replacement cost by component and system type (2026)

According to the U.S. Environmental Protection Agency (EPA), more than 20% of U.S. homes rely on decentralized septic systems. Replacement costs depend heavily on whether your county health engineer approves a conventional gravity trench/chamber system or mandates an engineered pressure-dosed, raised sand mound, or Aerobic Treatment Unit (ATU):

2026 Installed Septic Tank & Drain Field Replacement Costs
Septic Project Scope	Equipment & Materials	Excavation, Labor & Permit	2026 Installed Total
Soil Percolation ('Perc') Test & Site Design	$0 – $150	$450 – $1,850	$450 – $2,000
Distribution Box (D-Box) or Baffle Repair	$180 – $450	$470 – $1,100	$650 – $1,550
Septic Tank Replacement Only (1,000–1,500 Gal)	$1,600 – $3,600	$2,200 – $4,900	$3,800 – $8,500
Leach Drain Field Replacement Only (Gravel/Chamber)	$1,800 – $4,800	$2,700 – $7,700	$4,500 – $12,500
Full Conventional Gravity System (Tank + Field)	$3,400 – $7,500	$4,100 – $9,000	$7,500 – $16,500
Pressure-Dosed or Low-Pressure Pipe (LPP) System	$5,200 – $10,500	$5,800 – $11,500	$11,000 – $22,000
Engineered Raised Sand Mound or Aerobic (ATU)	$7,500 – $15,000	$6,500 – $13,500+	$14,000 – $28,500+

Bar chart comparing precast concrete septic tank replacement only ($3,800–$8,500), complete conventional gravity tank and leach field ($7,500–$16,500), and engineered raised sand mound or aerobic treatment unit ($14,000–$28,000+). — Comparing a standalone 1,000–1,500 gallon tank replacement against a complete gravity tank-and-field system and an engineered sand mound/ATU.

Required septic tank size and drain field cost by bedroom count

2026 Septic Tank Capacity & Complete Conventional System Cost by Bedroom Count
Home Size (Bedrooms)	Min Code Tank Size	Tank Replacement Only	Full Conventional System	Mound / ATU System
1 to 2 Bedrooms	750 – 1,000 Gal	$3,500 – $6,800	$6,800 – $13,200	$12,500 – $22,500
3 Bedrooms (Standard)	1,000 Gal	$3,800 – $7,600	$7,500 – $15,200	$14,000 – $25,500
4 Bedrooms	1,250 Gal	$4,400 – $8,500	$8,800 – $17,500	$15,800 – $28,500
5 to 6 Bedrooms	1,500 – 2,000 Gal	$5,400 – $10,500	$10,800 – $21,500	$18,500 – $34,000+

Worked example: 4-bedroom conventional gravity septic tank & leach field replacement

4-bedroom home · 1,250-gal concrete tank + gravity drain field

Worked example

Line Item	2026 Planning Range
1,250-gal precast concrete tank, risers, filter & old tank pump/crush	$4,200 – $7,900
Distribution box & 300 linear ft gravel/chamber leach drain field	$4,400 – $8,800
Soil perc test, septic designer plan & county health permit	$700 – $1,800
Turnkey conventional replacement total	$9,300 – $18,500

Does homeowners insurance cover septic replacement? (Plus USDA/EPA grant options)

Homeowners Insurance Rules: Standard HO-3 policies exclude gradual drain field biomat clogging, age corrosion, and soil saturation. Sudden collapse from a non-resident vehicle or fallen tree may qualify under Coverage B/A.
Federal & State Septic Grants (EPA CWSRF & USDA Section 504): Under USDA Section 504, very-low-income rural homeowners can borrow up to $40,000 at 1% over 20 years, and those aged 62 or older can also get grants of up to $10,000 to remove health and safety hazards such as a failed septic system. Many states also pass EPA Clean Water State Revolving Fund money to homeowners as low-interest septic repair loans.

Septic system replacement cost by region

The calculator's default septic system replacement job, repriced for each of its six regions. At the national average it runs $7,700 – $16,800; South / Lower Midwest is the lowest at $6,699 – $14,616, and West Coast metro is the highest at $10,010 – $21,840, a gap of about $5,268 at the midpoint.

Region	Planning range	Midpoint
National average	$7,700 – $16,800	$12,250
South / Lower Midwest	$6,699 – $14,616	$10,658
Mountain / Plains	$7,315 – $15,960	$11,638
Mid-Atlantic / Upper Midwest	$8,624 – $18,816	$13,720
Northeast metro	$9,702 – $21,168	$15,435
West Coast metro	$10,010 – $21,840	$15,925

What “Septic replacement scope” does to the price

Every other input stays at its default and only “Septic replacement scope” changes. The cheapest choice, Septic tank replacement only (drain field is sound), comes to $3,750 – $8,350; the most expensive, Engineered raised sand mound or Aerobic (ATU) system, comes to $13,900 – $28,700.

Choice	Planning range	Midpoint vs default
Septic tank replacement only (drain field is sound)	$3,750 – $8,350	−$6,200
Leach drain field replacement only (gravel or chambers)	$4,800 – $13,000	−$3,350
Complete conventional gravity system (tank + D-box + field) (default)	$7,700 – $16,800	—
Pressure-dosed / pump chamber system (tank + pump + field)	$10,900 – $22,000	+$4,200
Engineered raised sand mound or Aerobic (ATU) system	$13,900 – $28,700	+$9,050

What “Home size (bedrooms — sets code tank & field size)” does to the price

Every other input stays at its default and only “Home size (bedrooms — sets code tank & field size)” changes. The cheapest choice, 1–2 bedrooms (750–1,000 gal), comes to $7,000 – $15,320; the most expensive, 5+ bedrooms (1,500–2,000 gal · +38%), comes to $10,360 – $22,424.

Choice	Planning range	Midpoint vs default
1–2 bedrooms (750–1,000 gal)	$7,000 – $15,320	−$1,090
3 bedrooms (1,000 gal standard) (default)	$7,700 – $16,800	—
4 bedrooms (1,250 gal · +18%)	$8,960 – $19,464	+$1,962
5+ bedrooms (1,500–2,000 gal · +38%)	$10,360 – $22,424	+$4,142

How age changes the septic system replacement claim payout

Using the default job, a $1,000 deductible and a 30-year expected life. At 10 years old, about $4,083 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.

Age	Wear	First check	Held back
2 years	7%	$10,433	$817
5 years	17%	$9,208	$2,042
10 years	33%	$7,167	$4,083
15 years	50%	$5,125	$6,125
20 years	67%	$3,083	$8,167
30 years	80%	$1,450	$9,800

Quote checklist: 7 items to verify

Septic quotes depend on the soil test and county rules, so start with the design.

Perc test and design. Who does them and whether they are included.
System type. Conventional, pressure-dosed, mound or treatment unit.
Tank. Size, material, compartments, risers and effluent filter.
Drain field. Length, trench width and stone or chambers.
Old system. Pumping and decommissioning the old tank.
Permit and inspections. County health permit and final approval.
Restoration. Grading, seed and driveway repair.

How long the job takes

Stage	Typical time	What happens
Soil test and design	1 – 4 weeks	Perc test and plan.
County permit	2 – 8 weeks	Varies widely by county.
Installation	2 – 7 days	Tank, box and field.
Inspection	1 – 5 days	Before backfill.
Grading and seed	1 – 2 days	Lawn grows back over weeks.

Avoid driving or parking over the new tank and field; heavy loads can crush pipes and compact the soil.

Common mistakes that raise the cost

Driving on the field. Vehicles crush pipes and compact soil.
Skipping pumping. Solids reach the field and ruin it.
Planting trees nearby. Roots clog lines.
Using additives instead of pumping. They do not replace regular pumping.
Flushing the wrong things. Wipes, grease and chemicals harm the system.

Ways to keep the cost down

Septic costs depend on soil and system type.

Pump regularly. Avoid field failure.
Conserve water. Less load.
Repair rather than replace. When the field is sound.
Compare system types. Where soil allows.
Ask about county assistance. Some programs exist.
Plan access. Excavation cost.

Signs your septic is failing

Act quickly to protect health and the yard.

Slow drains. Backup.
Sewage odors. Field failure.
Soggy ground over the field. Effluent surfacing.
Lush grass over the field. Leaking.
Backups. Tank full.

Sources and further reading

Frequently asked questions

How much does it cost to replace a septic tank and drain field in 2026?

A complete conventional gravity septic system (1,000 to 1,250-gallon tank + distribution box + gravel or chamber leach field) typically costs $7,500 to $16,500 installed in 2026. Engineered raised sand mounds or Aerobic Treatment Units (ATUs) run $14,000 to $28,500+.

Can I replace just the septic tank without replacing the drain field?

Yes, if a septic inspection confirms that your leach drain field is still draining properly and only the tank itself is cracked, rusted, or has collapsed baffles ($3,800 to $8,500).

Can a clogged septic drain field be rejuvenated without digging it up?

If a drain field is backing up only because a tilted distribution box flooded a single trench, replacing the D-box ($650–$1,550) and resting the field can help. Once soil pores are sealed with thick anaerobic biomat after 25–35 years, a new drain field must be excavated.

Are concrete septic tanks better than plastic (poly) or fiberglass tanks?

Precast concrete tanks are heavier, last 40+ years, and resist buoyant groundwater flotation. Poly or fiberglass tanks never rust or spall from sewer gas and are easier to carry into tight backyards.

How long does a septic tank and drain field last?

A precast concrete or poly septic tank lasts 30 to 50+ years if pumped every 3 to 5 years. A conventional gravel or chamber leach drain field typically lasts 20 to 35 years.

Does Service Line Insurance cover a septic tank or leach field?

Most Service Line endorsements cover the pipe from the house to the septic tank inlet, and some cover the tank, but many exclude the earthen leach field bed itself.

How much does a new leach field cost on its own?

Replacing only the drain field, with gravel trenches or plastic chambers, usually runs about $4,500 to $12,500. The soil test decides most of that price: good percolation allows a conventional field, while poor soil, a high water table or shallow bedrock can force an engineered mound, which pushes the whole system toward $14,000 to $28,000 or more. A failed field is often a sign the tank was not pumped often enough, so ask the installer to inspect the tank and baffles before you approve a field-only job.

How often should a septic tank be pumped?

Often every three to five years, depending on tank size and household size. Regular pumping keeps solids out of the drain field, the most expensive part to replace.

Can I build over a drain field?

No. Buildings, patios, driveways and parked vehicles compact the soil and crush pipes, and the field needs air and access for service.

What is a perc test?

A percolation test measures how quickly water soaks into the soil. The result, with soil borings, decides the size and type of septic system allowed.

Can a septic system freeze?

It is rare in systems used daily, but shallow pipes, compacted snow and long vacancies increase the risk.

What is an effluent filter?

A filter at the tank outlet that keeps solids from leaving the tank and clogging the drain field. It should be cleaned during pumping.

Can septic be converted to public sewer?

Yes, where a public sewer is available. The tank is pumped and decommissioned and a lateral is connected to the main.

Related planning tools

Next steps for your estimate

The next questions after a septic tank & drain field estimate usually land on one of these.

Sewer line replacement calculatorPrice the main drain line from your house foundation to the septic tank.Water damage restoration calculatorEstimate Category 3 sewage backup cleanup and sanitization.Foundation & waterproofing calculatorCheck perimeter drainage and sump discharge away from your leach field.Home repair grants checkerScreen USDA Section 504 and HUD rural health-hazard repair grants.Should I file a claim?Test whether a collapsed tank or backup claim beats your deductible.Driveway replacement cost calculatorKeep heavy driveway paving and parking loads 10+ feet off septic components.Well pump calculatorPump and pressure tank for a private well.

Key topics covered
