Water heater replacementWater heater replacement cost calculator
Most people price a water heater the day it fails, which is the worst possible time to be comparing quotes. The unit itself is rarely the expensive part — the water damage is.
Reviewed 25 October 2026 · Written by Mantu Kumar
See the illustrated project guide
Written and maintained by Mantu Kumar
Evidence review4 August 2026
Calculation rulesRead the methodology
Quality standardEditorial policy
2026 planning ranges
- 1Dip tube & tank · 50 gal gas $1,400–$2,700
- 2Anode rod protects the tank
- 3Draft hood & vent
- 4T&P valve + discharge pipe
- 5Expansion tank on the cold line
- 6Gas shutoff & sediment trap
- 7Installation labor
- 8Haul-away + permit
- 9Tankless or heat pump
Tankless, gas: $3,000–$6,500 installed; the gas line and vent are often upsized.
Water heater replacement cost estimate
No email · nothing sentDiagram, part by part
Water heater replacement: every numbered part explained
The water heater replacement drawing above has 9 numbered parts, from Dip tube & tank to Tankless or heat pump instead. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.
1 Dip tube & tank
50 gal gas $1,400–$2,700
The tank holds and heats the water, and the dip tube sends incoming cold water to the bottom so hot water leaves from the top. Capacity, fuel and the warranty length set the price.
What moves it: Tank size, fuel and warranty.
On the quote: Ask for gallons, first-hour rating and the tank warranty in years.
2 Anode rod protects the tank
Part of the tank
The anode rod corrodes so the steel tank does not. Checking it every few years and replacing it when it is worn can add years to the tank.
What moves it: Water hardness and softener use.
On the quote: Ask how to check the anode and what a replacement costs.
3 Draft hood & vent
Gas heaters need a draft hood and vent sized to the appliance to carry exhaust safely outside. High-efficiency and power-vent models vent through plastic pipe instead.
What moves it: Heater type and the existing chimney or vent.
On the quote: Check that the vent size matches the new heater and that the chimney liner is suitable.
4 T&P valve + discharge pipe
Part of every install
The temperature and pressure relief valve opens if heat or pressure builds too high. Its discharge pipe must run down to within a few inches of the floor or to a drain.
What moves it: Local code.
On the quote: Check that the discharge pipe runs toward the floor and is not capped.
5 Expansion tank on the cold line
An expansion tank on the cold line absorbs pressure when water heats. It is required where a check valve or backflow device closes the system. A drain pan protects the floor.
What moves it: Your water system and local code.
On the quote: Ask if code requires an expansion tank and a drain pan where the heater sits.
6 Gas shutoff & sediment trap
Part of the gas hookup
A gas shutoff and sediment trap protect the burner and let you turn off gas at the heater. Larger or tankless heaters may need a bigger gas line.
What moves it: Heater input and the existing gas line.
On the quote: Check that both are installed and the gas line is sized for the new heater.
7 Installation labor
$450–$1,100
Labor covers draining and disconnecting the old heater, setting the new one, connecting water, gas or power and venting, and testing for leaks and proper draft.
What moves it: Location, access and how much the hookups change.
On the quote: Ask whether the plumber tests for gas leaks and backdraft before leaving.
8 Removal, haul-away and permit
$180–$640
The old heater is drained and hauled away, and most towns require a permit and inspection for a water heater replacement because of the gas and pressure hazards.
What moves it: Your town and the heater location.
On the quote: Ask who pulls the permit and whether disposal is included.
9 Tankless or heat pump instead
Higher upfront, lower bills
Tankless heaters heat water on demand and save space, but often need a larger gas line, new venting or heavy electrical service. Heat pump water heaters use far less electricity but need room and a condensate drain.
What moves it: Fuel, household demand and the space available.
On the quote: Ask what gas, vent or electrical changes the option needs.
A closer look at your project

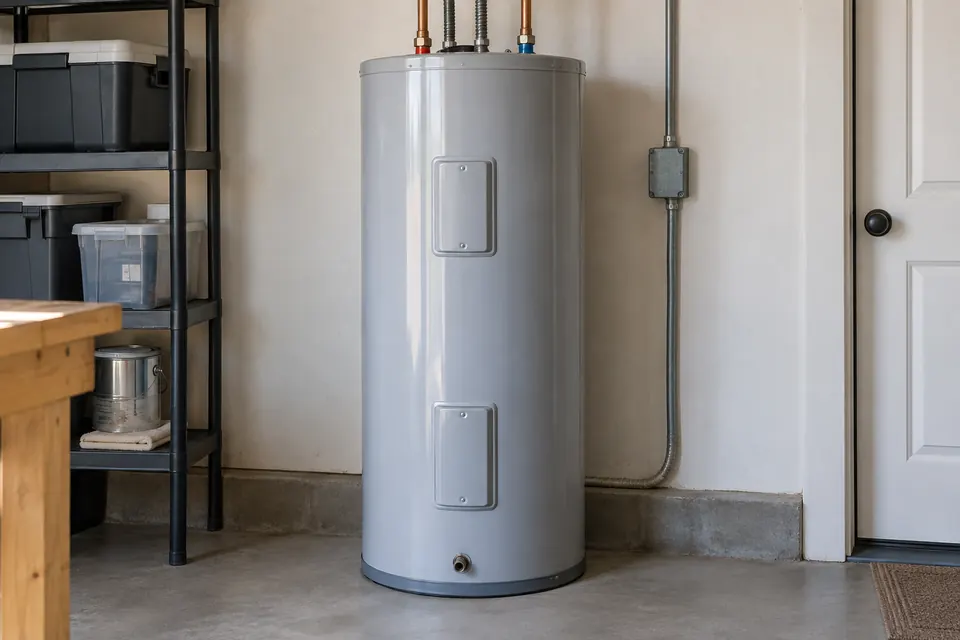

The space around the heater affects the job
Replacing a unit in the same location and converting to a different system are separate scopes. Record what you have before comparing prices.

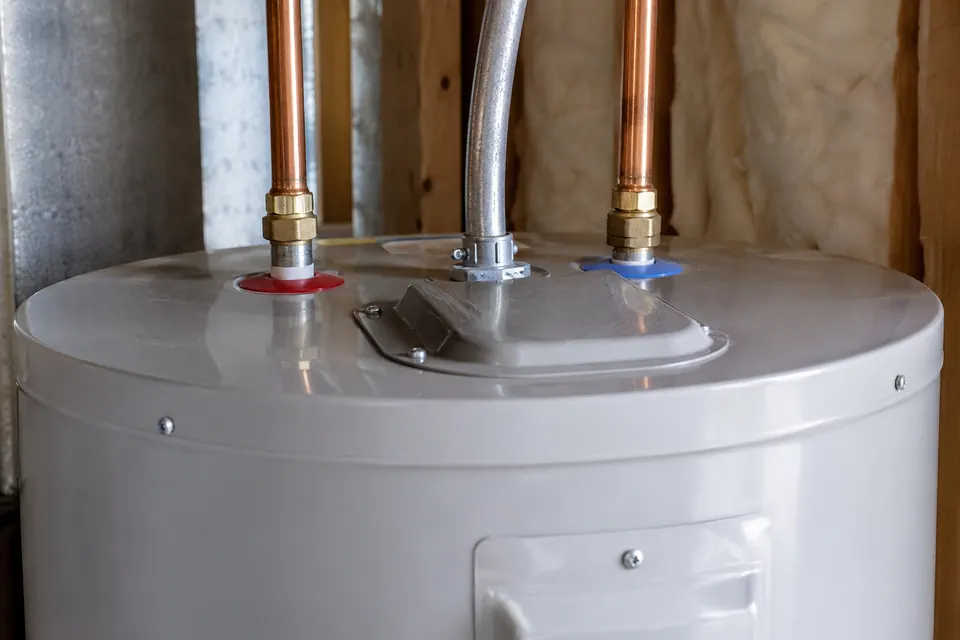

Three parts of the same picture, each tied to a line on a water heater estimate. These close-ups are crops of the same AI-generated illustration.
Explain any planned conversion
Tell the installer if you want a different fuel, technology or location. Ask whether new pipework, venting or electrical work belongs in the proposal.

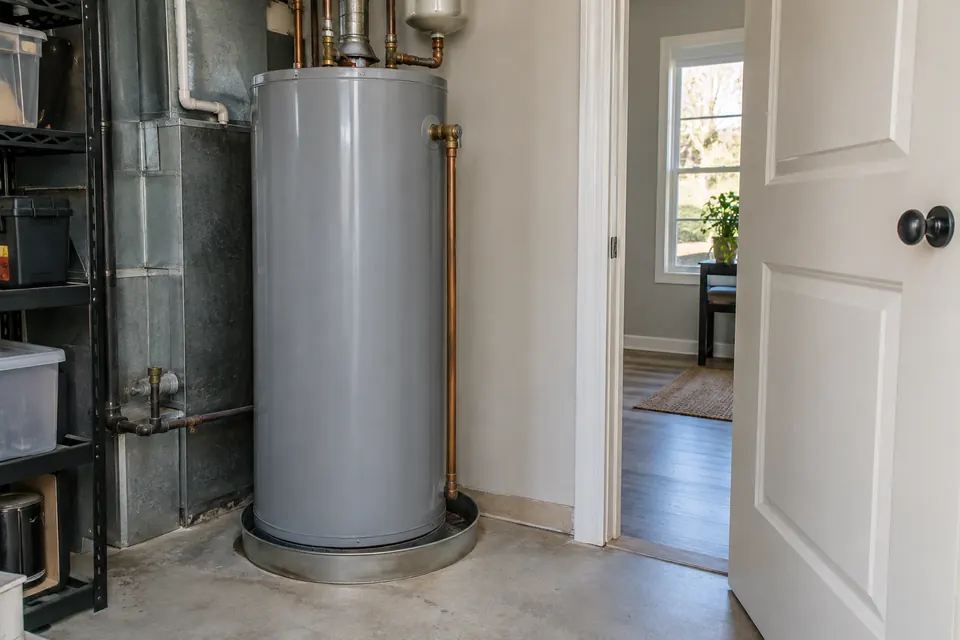

Check removal and access
Measure accessible doorways and note where the existing heater sits. Ask how the old unit will be removed and which pan, drainage and permit items are included.
Before comparing totals, ask for these details
- Unit
- Fuel, capacity or flow rating, model and warranty
- Related work
- Connections, drainage, venting or electrical changes
- Installation
- Removal route, labor, disposal and permit responsibility
On this page
- Tank or tankless
- Sizing
- The part that actually costs money
- When to replace before it fails
- Water heater replacement cost by region
- What “Extra work needed” does to the price
- What “Type” does to the price
- How age changes the water heater replacement claim payout
- Quote checklist: 7 items to verify
- How long the job takes
- Ways to keep the cost down
- Questions
Tank or tankless
A conventional tank heater is cheaper to buy, cheaper to fit and simpler to service. It keeps 40 to 80 gallons hot around the clock, which costs energy, and it lasts 8 to 12 years.
A tankless unit heats on demand, lasts 20 years or more, and never runs out. It also costs two to three times more to install, because it usually needs a bigger gas line, a new vent, and sometimes an electrical upgrade. The energy saving is real but modest — the case for tankless is longevity and endless hot water, not the utility bill.
| Type and size | Installed, typical | Expected life |
|---|---|---|
| 30 gallon tank, electric | $900 – $1,700 | 10 yrs |
| 40 gallon tank, gas | $1,200 – $2,300 | 10 yrs |
| 50 gallon tank, gas | $1,400 – $2,700 | 10 yrs |
| 75 gallon tank, gas | $2,000 – $3,800 | 10 yrs |
| Tankless, gas | $3,000 – $6,500 | 20 yrs |
| Heat pump / hybrid | $2,200 – $4,500 | 14 yrs |
Sizing
A 40 gallon tank suits most two to three person households. Four or more people, or a house with two bathrooms in simultaneous use, usually wants 50 to 75. Tankless units are rated by flow rather than capacity — measured in gallons per minute, sized against how many fixtures might run at once.
Oversizing a tank wastes energy keeping water hot that nobody uses. Undersizing means cold showers and a unit that runs constantly. Neither is expensive to get right at the point of purchase, and both are annoying to live with for a decade.
The part that actually costs money
A tank holds 40 to 80 gallons. When one fails, it frequently fails by emptying that onto the floor. In a finished basement or an upstairs closet, the resulting damage regularly exceeds the cost of the heater several times over — Angi puts water damage repair at $3.75 to $7 per square foot, with homeowners typically spending $1,300 to $5,550, and considerably more where mold remediation follows.
Sudden discharge is covered. A slow leak usually is not.
Most homeowners policies cover water damage from a sudden burst, subject to your deductible.
Gradual seepage that went unnoticed is excluded almost everywhere, and the heater itself is not
covered when it simply wears out. A $15 pan and a $50 leak sensor are the cheapest insurance
available for an unit past eight years old.
When to replace before it fails
Rusty hot water, a rumbling noise from sediment, moisture around the base, or an age past ten years all point the same direction. Replacing on your own schedule costs the same as replacing in an emergency, minus the emergency call-out premium and minus the flooring.
Weighing a repair quote against a new unit? The repair or replace calculator runs the 50% rule and compares the cost per year of each path. If a tank has already leaked, size the cleanup with the water damage calculator.
Water-heater result summaryThe complete installation is more than the tank: capacity, fuel, venting or electrical connections, access, removal, drain protection and permit work can all change the range. Sudden covered damage is different from age, corrosion, leakage over time or ordinary equipment failure.
Water heater renovation cost: replacement or conversion?
A like-for-like replacement and a tank-to-tankless conversion are different projects. Before comparing estimates, identify fuel type, tank capacity or required flow rate, location, venting and whether electrical or gas connections need changes.
Ask the installer to itemize the unit, removal, labor, permit responsibility, drain pan or condensate work, venting and any required utility upgrades. An allowance in this calculator is not proof that every site-specific requirement is covered.
Use the calculator for a planning range. If you also need heating or cooling equipment, use the HVAC replacement cost calculator for that separate scope.
Worked example: a 50-gallon tank against a tankless unit
Using the size rows published on this page. A like-for-like tank swap is the smaller project. Tankless is a different gas line, vent and sometimes a panel upgrade.
Same house, two machines
Worked example| 50-gallon tank, gas, installed | $1,200 – $2,700 |
| 75-gallon tank, gas | $2,000 – $3,800 |
| Tankless | $3,000 – $6,500 |
| Extra if the flue or gas line is wrong | inside the wide tankless band |
| Expected life, tank vs tankless | about 8–12 years vs about 20 |
| Do not compare the tank price to a tankless quote | They are different scopes |
A 15-year-old tank that simply fails is wear. A sudden leak that damages the floor is a water-damage claim, priced on the water damage calculator, and the heater itself may still be depreciated. Climate matters for tankless sizing: a cold incoming-water temperature needs a larger unit than the same household in the South.
Water heater replacement cost by region
The calculator's default water heater replacement job, repriced for each of its six regions. At the national average it runs $1,470 – $3,460; South / Lower Midwest is the lowest at $1,279 – $3,010, and West Coast metro is the highest at $1,911 – $4,498, a gap of about $1,060 at the midpoint.
| Region | Planning range | Midpoint |
|---|---|---|
| National average | $1,470 – $3,460 | $2,465 |
| South / Lower Midwest | $1,279 – $3,010 | $2,144 |
| Mountain / Plains | $1,397 – $3,287 | $2,342 |
| Mid-Atlantic / Upper Midwest | $1,646 – $3,875 | $2,760 |
| Northeast metro | $1,852 – $4,360 | $3,106 |
| West Coast metro | $1,911 – $4,498 | $3,204 |
What “Extra work needed” does to the price
Every other input stays at its default and only “Extra work needed” changes. The cheapest choice, Straight swap, same location, comes to $1,470 – $3,460; the most expensive, Wall must be opened, comes to $2,470 – $6,460.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Straight swap, same location (default) | $1,470 – $3,460 | — |
| Relocating the unit | $1,870 – $4,760 | +$850 |
| Gas line or venting upgrade | $1,970 – $5,260 | +$1,150 |
| Electrical upgrade | $2,070 – $5,460 | +$1,300 |
| Wall must be opened | $2,470 – $6,460 | +$2,000 |
What “Type” does to the price
Every other input stays at its default and only “Type” changes. The cheapest choice, Tank — electric, comes to $1,400 – $3,330; the most expensive, Tankless — gas, comes to $2,320 – $5,660.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Tank — gas (default) | $1,470 – $3,460 | — |
| Tank — electric | $1,400 – $3,330 | −$100 |
| Tankless — gas | $2,320 – $5,660 | +$1,525 |
| Tankless — electric | $1,920 – $4,860 | +$925 |
| Hybrid heat pump | $2,320 – $4,960 | +$1,175 |
How age changes the water heater replacement claim payout
Using the default job, a $1,000 deductible and a 10-year expected life. At 10 years old, about $1,972 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.
| Age | Wear | First check | Held back |
|---|---|---|---|
| 2 years | 20% | $972 | $493 |
| 5 years | 50% | $233 | $1,233 |
| 10 years | 80% | $0 | $1,972 |
| 15 years | 80% | $0 | $1,972 |
| 20 years | 80% | $0 | $1,972 |
| 30 years | 80% | $0 | $1,972 |
Quote checklist: 7 items to verify
Water heater quotes are easiest to compare with the same type and size.
- Type and size. Tank, tankless or heat pump; gallons or flow rate.
- Brand and warranty. Tank and parts warranty years.
- Venting. Vent size or new venting for the model.
- Gas or electrical. Line size or circuit changes.
- Code items. Expansion tank, drain pan, T&P discharge and seismic straps where required.
- Haul-away. Old heater removed.
- Permit. Pulled and inspected.
How long the job takes
| Stage | Typical time | What happens |
|---|---|---|
| Diagnosis or quote | 30 – 60 minutes | Size and venting checked. |
| Same-type swap | 2 – 4 hours | Most tank replacements. |
| Tankless or relocation | 0.5 – 2 days | Gas, vent or electrical changes. |
| Inspection | 1 – 14 days | Depends on the town. |
If the old tank is leaking, shut off the cold supply and the power or gas, and drain it to limit water damage until the swap.
Ways to keep the cost down
Water heater costs depend on type and hookups.
- Keep the same type. No new venting.
- Choose the right size. Not oversized.
- Flush yearly. Longer life.
- Check rebates. Heat pump models.
- Replace before failure. Avoid emergency fees.
- Insulate pipes. Lower bills.
Questions
How much does it cost to replace a water heater?
A straight tank swap typically runs $1,200 to $2,700 installed for 40 to 50 gallons. Tankless runs $3,000 to $6,500 because it usually needs gas line, venting and sometimes electrical work. Removing and hauling the old unit adds $100 to $500.
Is tankless worth the extra cost?
For longevity and endless hot water, often yes — 20 years or more against 10 for a tank. For energy savings alone the payback is slow. The install premium comes from gas line sizing, new venting and occasionally an electrical upgrade.
What size water heater do I need?
40 gallons suits most two to three person households, 50 to 75 for four or more or where two bathrooms run at once. Tankless units are sized by flow rate in gallons per minute rather than capacity.
Does homeowners insurance cover a leaking water heater?
Sudden discharge is generally covered for the resulting water damage, subject to your deductible. Gradual seepage is excluded almost everywhere, and the heater itself is not covered when it wears out.
How long does a water heater last?
Tanks commonly reach 8 to 12 years, tankless 20 or more, hybrid heat pump units around 14. Hard water shortens all of these — annual flushing genuinely helps.
What are the signs a water heater needs replacing?
Rusty hot water, rumbling from sediment buildup, moisture around the base, or an age past ten years. Replacing on your own schedule avoids the emergency call-out premium and the flooring bill.
How often should a water heater be flushed?
Many makers suggest draining a few gallons or flushing a tank once a year to remove sediment, and more often with hard water. Sediment makes gas heaters rumble, wastes energy and shortens tank life.
What is a heat pump water heater?
A water heater that moves heat from the surrounding air into the water, using much less electricity than a standard electric tank. It needs open space, airflow, a condensate drain and works best in garages or basements that stay above about 40 degrees.
Can I install a water heater myself?
Many areas require a permit, and some require a licensed plumber, because gas, venting and pressure relief must be installed correctly.
Related
- Flooring replacement — what a failed tank usually destroys
- Claim gap calculator — run the water damage figure through it
- What insurance actually pays — sudden burst versus slow leak
Where these figures come from
Rates are cross-checked against 2026 published pricing from Angi, HomeGuide and Modernize. Angi notes removal and haul-away at $100 to $500, drywall work at $1,000 to $3,000 where a wall must be opened, and water damage repair at $3.75 to $7 per square foot averaging $1,300 to $5,550. Depreciation is modeled straight-line against expected service life; carriers use
their own schedules and some cap payouts by age. These are ranges for planning, not quotes,
and nothing here is a coverage determination.
Evidence trail
Reviewed 4 Aug 2026Sources used to check this model
Primary public references anchor equipment guidance, plumbing labor and insurance terminology. Calculator rates remain planning assumptions tested against published market ranges.
Equipment standardDOE: Water heating
U.S. labor referenceBLS: Plumbers and pipefitters
Insurance termsNAIC homeowners guidance
These organizations do not endorse ReplaceCost. Local contractor quotes, permits, product specifications and the written insurance policy control the real result. See the full methodology for the source hierarchy and update process.
Water-heater planning
Water-heater replacement topics that change the quote
The biggest cost differences usually come from equipment type, capacity and installation conditions.
Tank replacement
Compare capacity, fuel type and whether existing connections can be reused safely.
Water filter and softener calculatorTreat hard water before it reaches the heater.Water storage tank calculatorStorage tanks and cisterns, not heaters.
Tankless conversion
A conversion can require additional gas, venting, electrical or plumbing work.
Installation scope
Access, disposal, code upgrades and connection changes can affect labor.
Estimate before buying
Use the calculator above to compare realistic installed scope, not only equipment price.
Related searches
Popular water heater replacement searches
Common wording people use when comparing costs, estimates and next steps.
water heater renovation cost
water heater replacement cost calculator
heater estimate
water heater cost estimate
cost to replace a water heater
water heater estimates
water heater cost calculator
how much to replace gas hot water heater
tankless water heater installation cost calculator
