Sewer line replacement cost calculator

Replacing a 50-foot residential sewer lateral from the house foundation to the street main typically costs $4,000 to $13,500 depending on whether the crew digs an open trench or uses trenchless pipe bursting or CIPP epoxy lining. Price your run by length, depth, and method—and check whether a Service Line Endorsement covers the bill.

Reviewed 25 October 2026 · Written by Mantu Kumar

See the illustrated inspection guide · Interactive system diagram

Written and maintained byMantu Kumar

Evidence review16 October 2026

Calculation rulesRead the methodology Quality standardEditorial policy

Key facts at a glance

• Open-trench PVC sewer replacement runs $65–$220 per linear foot ($3,250–$11,000 for 50 ft in yard soil), plus $2,000–$5,500 if concrete driveway or city street asphalt must be cut and repaved.
• Trenchless CIPP (Cured-in-Place Pipe) epoxy lining runs $80–$190 per linear foot ($4,000–$9,500 for 50 ft) and requires only one access pit.
• Trenchless hydraulic pipe bursting runs $95–$230 per linear foot ($4,750–$11,500 for 50 ft) and pulls a brand-new seamless HDPE pipe through collapsed clay or Orangeburg pipe.
• Localized spot repair + two-way cleanout installation (for a single offset joint or root entry near the foundation) runs $1,500–$4,200.
• Standard HO-3 policies exclude underground exterior sewer pipes unless you added an optional Service Line Coverage endorsement ($10,000–$25,000 limit for ~$40/yr).

Sources: 2026 International Plumbing Code (IPC Chapter 7), NASSCO trenchless rehabilitation guidelines, and U.S. plumbing/excavation contractor benchmarks.

2026 planning ranges

1. 1Camera + two-way cleanout · $450–$1,100
2. 2Spot repair · $1,500–$4,200
3. 3Open trench PVC · $65–$180 per ft
4. 4Bursting / CIPP · $80–$230 per ft
5. 5Driveway or street cut · +$2,000–$5,500
6. 6City main tie-in + permit
7. 7Roots + cleaning
8. 8Clay, cast iron or Orangeburg
9. 9Service line endorsement

Sewer line repair & replacement cost estimator

No email · nothing sent

Work out the cost & payout

Diagram, part by part

Sewer line replacement: every numbered part explained

The sewer line replacement drawing above has 9 numbered parts, from Camera + two-way cleanout to Sewer line coverage. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.

1. 1 Camera + two-way cleanout

   $450–$1,100

   A camera inspection shows the break, root intrusion or belly and how far it is from the cleanout. A two-way cleanout outside makes future cleaning and inspection easy.

   What moves it: Line length and access to a cleanout.

   On the quote: Ask for the video and a written note of where each problem is.

2. 2 Spot repair

   $1,500–$4,200

   A spot repair digs down and replaces one broken section when the rest of the pipe is sound. It is the cheapest fix but leaves the rest of the old line in place.

   What moves it: Depth, length of the bad section and surface above.

   On the quote: Ask how long the rest of the line is likely to last.

3. 3 Open trench PVC

   $65–$180 per ft

   Open trench replacement digs up the whole lateral and replaces it with PVC at the right slope, priced by the foot.

   What moves it: Length, depth and what is above the line.

   On the quote: Check trench length and how the yard is restored.

4. 4 Bursting / CIPP

   $80–$230 per ft

   Pipe bursting pulls a new pipe through the old one, and cured-in-place lining forms a new pipe inside it. Both avoid a long trench.

   What moves it: Pipe condition, length and the number of access pits.

   On the quote: Ask which method suits your pipe and for the warranty in writing.

5. 5 Driveway or street cut

   +$2,000–$5,500

   Lines under driveways, sidewalks or the street need cutting and patching, which adds thousands and may need a right-of-way permit.

   What moves it: Surface type and city rules.

   On the quote: Ask who restores the surface and whether the city charges for the street cut.

6. 6 City main tie-in and permit

   $150–$550

   The tie-in to the city main needs a permit and sometimes a city inspector or a city crew to make the connection.

   What moves it: Your city's fees and rules.

   On the quote: Confirm the city fees and who schedules the inspection.

7. 7 Roots and cleaning

   Cleaning is a short-term fix

   Tree roots enter at joints and cracks. Cutting or jetting them restores flow for a while, but they grow back until the pipe is repaired, lined or replaced.

   What moves it: Trees near the line and the pipe material.

   On the quote: Ask how often cleaning would be needed and compare it with a repair.

8. 8 Pipe material

   Older pipe fails sooner

   Older laterals are clay, cast iron or Orangeburg fiber pipe. Clay joints let roots in, cast iron corrodes, and Orangeburg deforms with age and usually needs full replacement.

   What moves it: Pipe age and material.

   On the quote: Ask the plumber to identify the pipe material on the camera video.

9. 9 Sewer line coverage

   May pay part of it

   Standard homeowners policies usually exclude wear and roots, but a service line endorsement may pay for a broken lateral up to its limit.

   What moves it: Your policy and the cause of the break.

   On the quote: Check your policy for a service line endorsement before you pay out of pocket.

Trenchless vs open excavation

Why a $300 sewer camera locate is mandatory before signing a $10,000 dig contract

Commissioned drain technicians often quote a full 60-foot sewer replacement when tree roots have only entered a single offset clay joint 8 feet outside the foundation wall—or recommend epoxy lining on a sunken 'bellied' pipe that lining cannot fix.

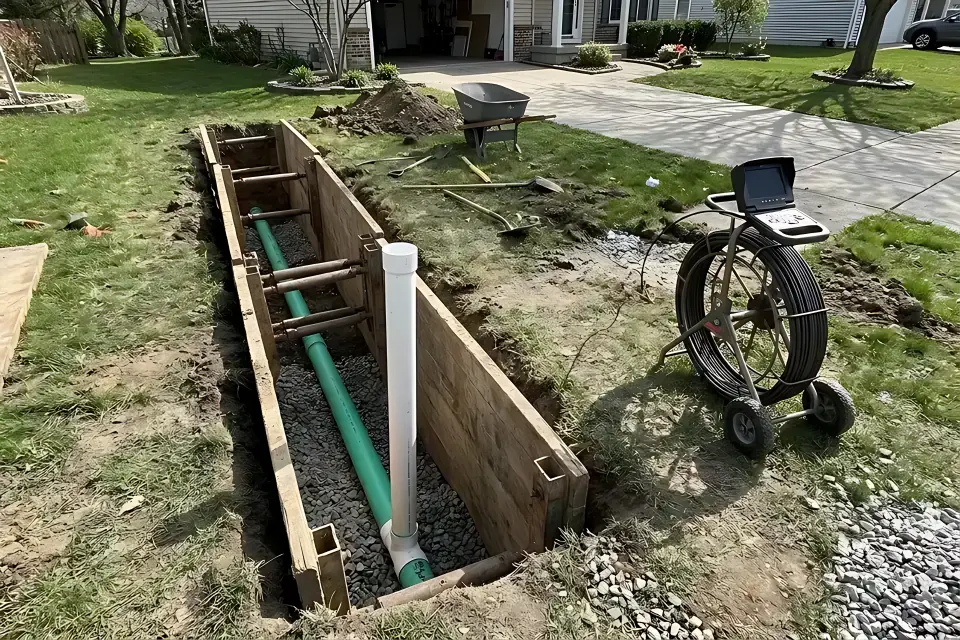

Three close-ups from the photo above, and what each one means for a sewer line quote. These close-ups are crops of the same AI-generated illustration.

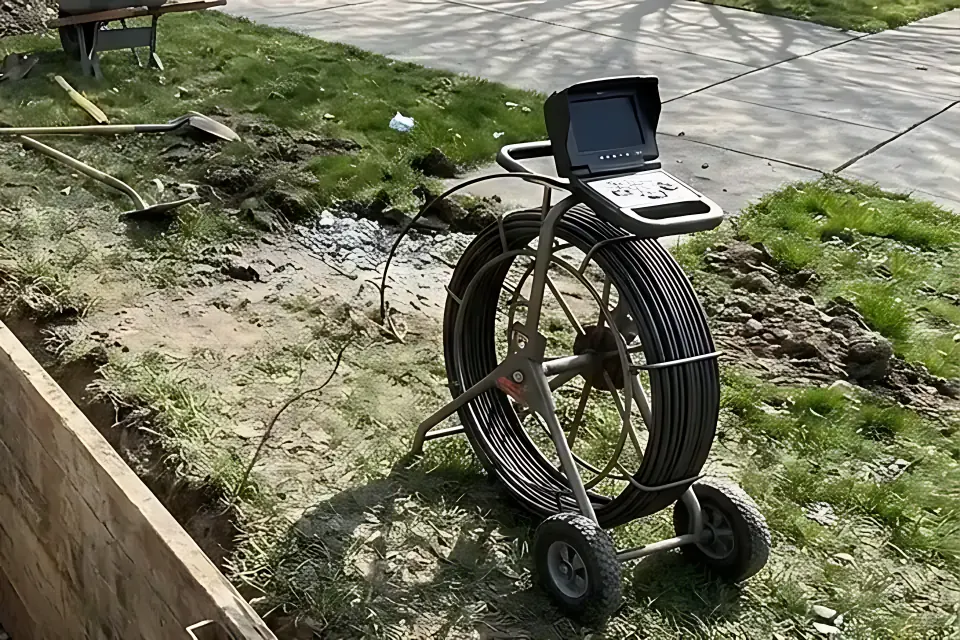

01 Camera video & depth locate

Get the USB/cloud video & paint flags

Insist on keeping the recorded camera video and having the plumber paint the exact failure spot and depth (e.g., 4 ft vs 11 ft deep) on the lawn so three independent contractors can bid without re-scoping.

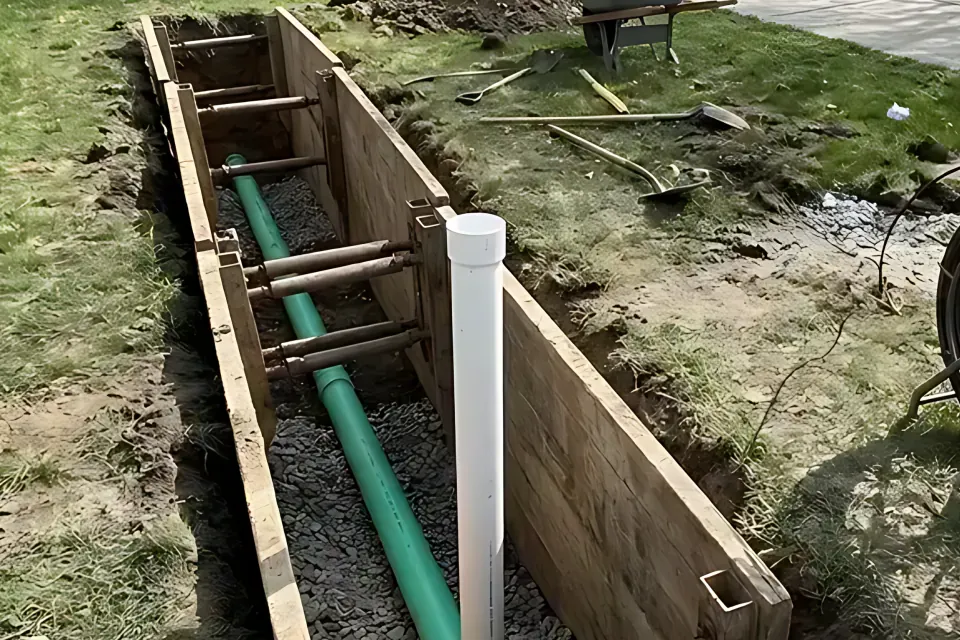

02 Open trench vs trenchless

Match the method to pipe material & slope

Trenchless CIPP lining and pipe bursting save $3,000–$7,000 in driveway, patio, and mature tree restoration—but if the ground has settled into a standing-water 'belly', only open excavation can re-grade the slope.

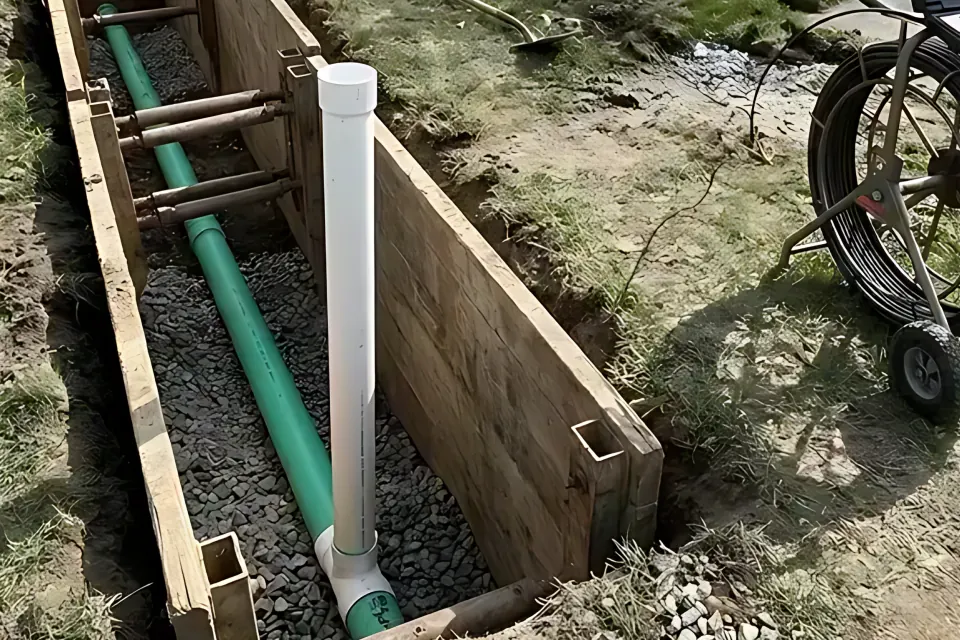

03 Cleanout & city street tap

Verify curb-to-main responsibility

In most U.S. municipalities, the homeowner owns the sewer lateral all the way to the city main wye tap under the street. Digging into city asphalt adds $2,000–$5,500 in traffic control, shoring, and street-cut permits.

Before you sign a quote or file a claim, verify these three details

Pipe material & SDR

Whether the quote specifies Schedule 40 PVC, heavy-wall SDR-35 PVC, or heat-fused SDR-17 HDPE (for pipe bursting) bedded in washed crushed stone

Driveway & street restoration

Whether concrete sidewalk/driveway re-pouring, city right-of-way street patches, and lawn grading are included or excluded in fine print

Service Line Endorsement

Whether your homeowners policy declarations page includes 'Service Line Coverage' ($10,000–$25,000 limit) which covers root intrusion, pipe collapse, and excavation

Had a sewage backup inside the basement? Open the Water Damage Restoration Calculator →

Sewer line replacement cost per linear foot by method (2026)

Residential sewer laterals typically run 40 to 90 feet from the foundation wall out to the municipal sewer main. Pricing per linear foot varies by excavation depth ( trenches deeper than 5 feet require OSHA trench shoring boxes and larger excavators), surface obstacles (driveways, retaining walls, mature trees, sidewalks, and city asphalt), and the chosen replacement method:

Trenchless CIPP epoxy lining vs pipe bursting: which one fits your pipe?

While trenchless methods carry a slightly higher per-foot plumbing rate than basic yard digging, they avoid tearing up $4,000 to $10,000 worth of concrete driveways, brick walkways, and mature landscaping. However, the two trenchless technologies solve very different failures:

• Cured-in-Place Pipe (CIPP) Lining ($80–$190/ft): A flexible felt or fiberglass liner saturated with two-part thermosetting epoxy resin is inverted or pulled through the existing pipe from a single cleanout or pit and cured with steam, hot water, or UV light. It reduces internal pipe diameter by roughly 1/4 inch (compensated by a smoother Manning friction coefficient), but requires the host pipe to still be round and properly sloped. Never line blistered Orangeburg pipe or a pipe with a standing-water belly.
• Hydraulic Pipe Bursting ($95–$230/ft): Requires digging two 4×4-foot access pits—one at the house foundation and one at the street curb or main. A hydraulic winch pulls a heavy conical steel bursting head through the old pipe, fracturing brittle clay, cast iron, or collapsed Orangeburg outward into the soil while simultaneously towing in a full-size, butt-fused seamless HDPE (High-Density Polyethylene) pipe with 50-to-100-year life and zero joints for tree roots to penetrate.

Legacy sewer pipe materials: Orangeburg, clay tile & cast iron

If your home was built before 1980, your sewer camera inspection will typically reveal one of three legacy materials:

Worked example: 50-foot sewer lateral replacement (open trench vs pipe bursting)

Here is how a 50-foot house-to-curb sewer lateral replacement compares when priced as an open-trench PVC excavation versus trenchless hydraulic pipe bursting, including camera inspection, permit, and a new two-way cleanout:

Does homeowners insurance cover a collapsed or root-damaged sewer line?

Under a base HO-3 homeowners policy, exterior underground sewer and water lines outside the foundation perimeter are excluded from tree root intrusion, corrosion, wear and tear, soil settlement, and frost heave. However, check your policy declarations page for two key endorsements before paying out of pocket:

• Service Line Coverage Endorsement ($10,000 to $25,000 Limit): Offered by most major carriers for $35 to $65 per year, a Service Line endorsement specifically covers underground sewer lateral collapse, tree root invasion, rust, frost, and mechanical breakdown from the house foundation to the street main—including excavation and driveway/lawn restoration, usually subject to a $500 or $1,000 deductible.
• Water & Sewer Backup Endorsement ($5,000 to $25,000 Limit): Covers the interior water/sewage mitigation, sanitization, and drywall/flooring rebuild inside your basement if the clogged sewer line backs up through a floor drain—though it does not pay to dig up the pipe in the yard.

Sewer line replacement cost by region

The calculator's default sewer line replacement job, repriced for each of its six regions. At the national average it runs $5,200 – $12,200; South / Lower Midwest is the lowest at $4,524 – $10,614, and West Coast metro is the highest at $6,760 – $15,860, a gap of about $3,741 at the midpoint.

What “Repair / replacement method” does to the price

Every other input stays at its default and only “Repair / replacement method” changes. The cheapest choice, Localized spot repair + 2-way cleanout (5–10 ft), comes to $1,750 – $4,600; the most expensive, Trenchless hydraulic pipe bursting (new HDPE), comes to $5,200 – $12,200.

What “Surface / street restoration” does to the price

Every other input stays at its default and only “Surface / street restoration” changes. The cheapest choice, Lawn / soil only (no pavement cut), comes to $5,200 – $12,200; the most expensive, City asphalt street cut & right-of-way permit (+$2,200–$5,500), comes to $7,400 – $17,700.

How age changes the sewer line replacement claim payout

Using the default job, a $1,000 deductible and a 50-year expected life. At 10 years old, about $1,740 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.

Quote checklist: 7 items to verify

Sewer quotes should be based on the camera video.

1. Camera findings. Video and problem locations.
2. Method. Spot repair, trench, lining or bursting.
3. Length. Feet replaced or lined.
4. Cleanout. Two-way cleanout included.
5. Surface restoration. Lawn, driveway or street.
6. Permit and city tie-in. Fees and inspection.
7. Warranty. Written, with length.

How long the job takes

Limit water use during the work; drains may be offline while the line is open.
