Single & Double Doors · R-12/R-18 Insulated Steel · Torsion Springs & OpenerA standard 16×7 double garage door replacement runs $1,400 to $3,500 installed in insulated steel, plus $380 to $750 if you replace the overhead opener at the same visit. Price single, double, or three-car doors by material and R-value, and check when vehicle impact or windstorm claims beat your deductible.
Reviewed 25 October 2026 · Written by Mantu Kumar
See the illustrated inspection guide · Interactive system diagram
Sources: Door & Access Systems Manufacturers Association (DASMA) wind-load and spring standards, UL 325 safety rules, and 2026 U.S. installer benchmarks.
2026 planning ranges
One dented panel: $350–$850 if the model is still made; otherwise the door is replaced.
Diagram, part by part
The garage door replacement drawing above has 9 numbered parts, from 16×7 insulated to Insulation and R-value. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.
$1,800–$3,500
An insulated 16 by 7 foot double door is the most common replacement. Three-layer steel with polyurethane insulation is quieter, stiffer and more efficient than single-layer steel, and it resists dents better.
What moves it: Door size, material, insulation and windows.
On the quote: Ask for the panel thickness, R-value and the warranty on panels and finish.
$250–$550
Torsion springs above the door balance its weight so the opener only guides it. Springs wear out after a set number of cycles and are dangerous to adjust without the right tools.
What moves it: Door weight and the spring cycle rating.
On the quote: Ask for the spring cycle rating, such as 10,000 or 20,000 cycles.
$200–$450
Rollers, cables and hinges guide and lift the door along the tracks. Worn parts cause noise and jerky travel, and frayed cables can fail suddenly.
What moves it: Roller type and the condition of the tracks.
On the quote: Ask whether nylon rollers and new cables are included with a new door.
$380–$850
The opener lifts the door and holds it closed. Belt drives are quieter; chain drives are cheaper; wall-mount openers free up ceiling space and suit high-lift tracks.
What moves it: Opener type, horsepower and smart features.
On the quote: Ask whether the old opener is reused and whether it matches the new door weight.
Included with the opener
Photo-eyes near the floor stop and reverse the door if something crosses its path. They are required for safety, and the door must also reverse when it touches an object.
What moves it: Opener model.
On the quote: Ask the installer to test the auto-reverse before leaving.
$100–$250
Hauling away the old door, tracks and springs. Old springs are under tension and must be released safely before removal.
What moves it: Door size and material.
On the quote: Ask whether removal of old tracks and springs is included.
Price scales with width
A single-car door is 8 or 9 feet wide; a double is 16 feet. A three-car setup usually pairs a double with a single, which means two doors, two sets of springs and often two openers.
What moves it: Opening width and the number of bays.
On the quote: Ask for the exact door sizes measured from the finished opening.
Added in hurricane zones
In high-wind areas, garage doors must be rated for wind pressure and reinforced with horizontal struts. A failed garage door can let wind pressurize the house and lift the roof.
What moves it: Your wind zone and door width.
On the quote: Ask for the door's wind-load rating and product approval number.
R-0 to R-18
Single-layer steel has no insulation. Polystyrene and polyurethane cores raise the R-value, which matters if the garage is attached, heated or has living space above.
What moves it: Door construction and how the garage is used.
On the quote: Ask for the R-value of the full door, not just the panel center.
Panels, springs & tracks

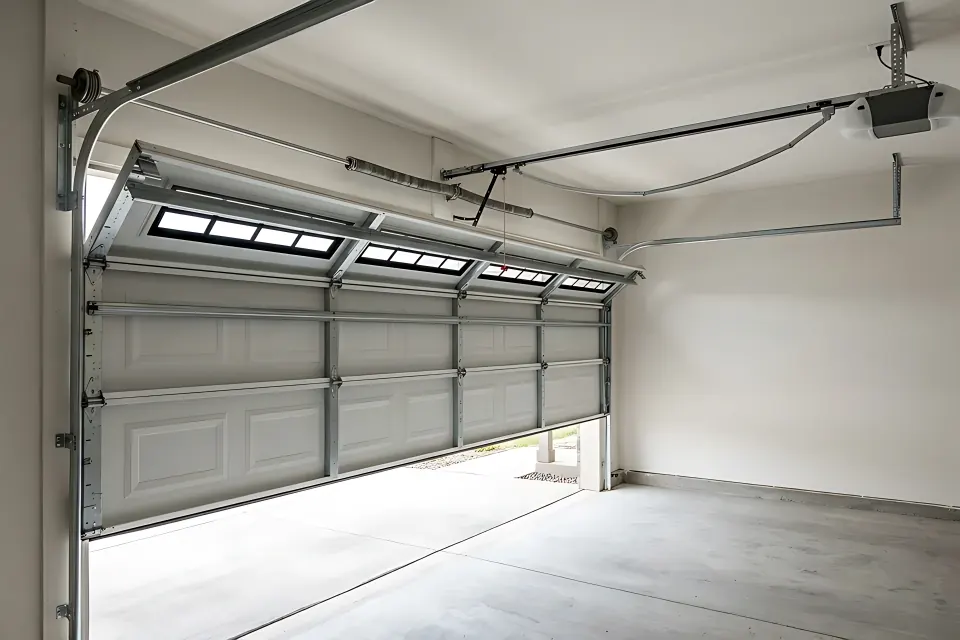

A sectional garage door lifts 180 to 400 pounds ten times a day. Installing new insulated panels onto fatigued torsion springs, worn plastic rollers, or bent tracks voids manufacturer warranties and burns out the opener motor.
Zoom in on three spots in the photo: these are the lines a garage door bid should spell out. These close-ups are crops of the same AI-generated illustration.

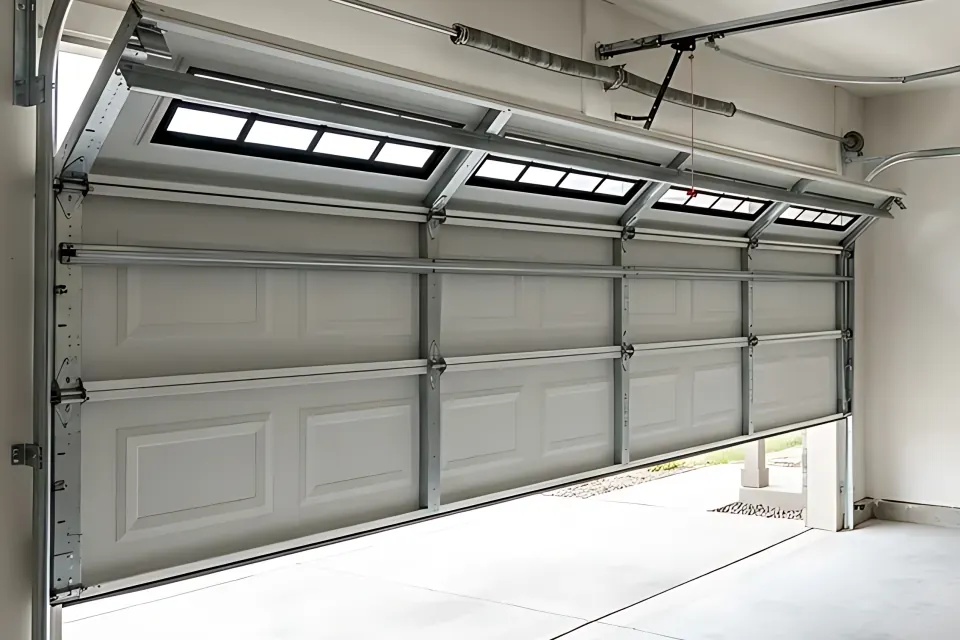

Single-layer 25-gauge pan doors dent easily and transfer summer heat into attached garages. A 3-layer sandwich door (steel + injected polyurethane R-12 to R-18 + steel back) is rigid, quiet, and energy-efficient.

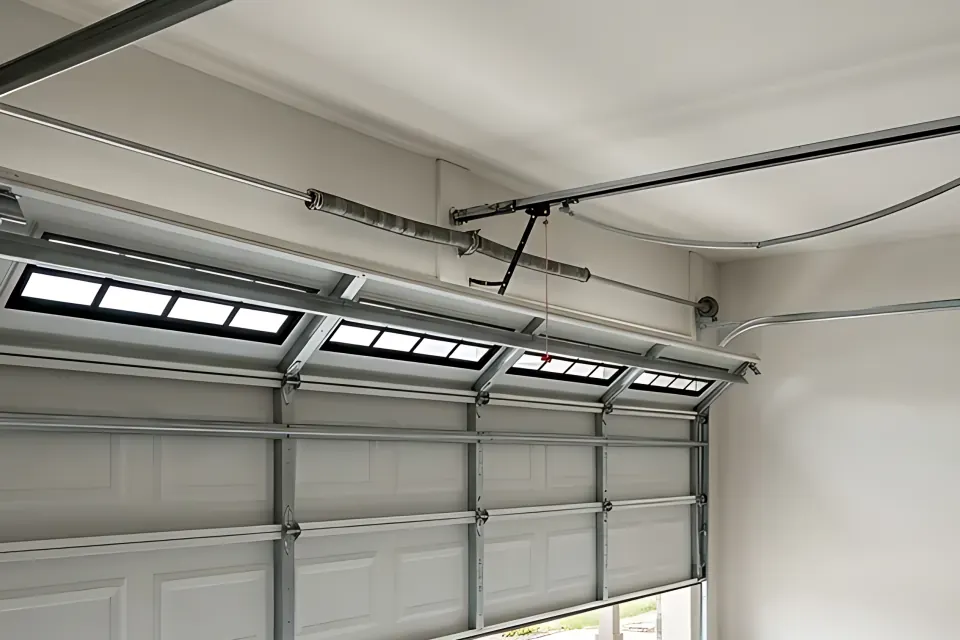

Standard builder springs last 10,000 cycles (5–7 years at 4 trips/day). Paying $90–$160 extra for high-cycle torsion springs doubles spring lifespan to 15+ years.
Replacing the opener during the door install saves a second service call. In hurricane and high-wind zones (FL, TX coast, Midwest), verify DASMA wind-code reinforcement struts.
Residential garage doors come in two standard heights (7 ft standard or 8 ft for tall trucks/SUVs) and three bay widths: single-car (8×7 or 9×7 ft), double-car (16×7 ft), and three-car (one 16×7 + one 8×7, or an extra-wide 18×8/20×8 custom door). The table below shows 2026 turnkey installed ranges including new tracks, torsion springs, hardware, and haul-away of the old door:
| Door Material & Construction | Single Door (8×7 / 9×7 ft) | Double Door (16×7 ft) | R-Value & Lifespan |
|---|---|---|---|
| 1-Layer Non-Insulated Pan Steel (25 ga) | $850 – $1,350 | $1,350 – $2,100 | R-0 · 15–20 yrs; noisy, dents easily, detached garages only |
| 2-Layer Steel + Polystyrene Board (Vinyl Back) | $1,050 – $1,650 | $1,600 – $2,650 | R-6 to R-9 · 20–25 yrs; moderate thermal & sound damping |
| 3-Layer Steel + Injected Polyurethane (Steel Back) | $1,250 – $2,100 | $1,950 – $3,500 | R-12 to R-18.4 · 25–30 yrs; best rigidity for attached garages |
| Faux-Wood Composite Overlay / Carriage House | $1,900 – $3,400 | $2,900 – $5,600 | R-12 to R-16 · 25–30 yrs; wood-grain look without rot or repainting |
| Full-View Aluminum & Tempered / Frosted Glass | $2,400 – $4,200 | $3,800 – $7,500+ | R-4 to R-10 (insulated glass) · 25–30 yrs; modern architectural style |
| Solid Cedar, Hemlock or Mahogany Wood | $2,800 – $4,800 | $4,500 – $8,800+ | R-8 to R-12 · 20–30 yrs; heavy (requires high-torque springs & stain) |
If your garage shares a wall with a kitchen/family room or sits underneath a bedroom, a uninsulated single-layer steel door acts like a 112-square-foot metal radiator. Upgrading from a 1-layer pan door to a 3-layer steel-polyurethane-steel sandwich door adds $450 to $850 on a 16×7 opening but delivers three mechanical advantages recognized by DASMA Technical Data Sheets:
Not every broken garage door needs a $2,400 replacement. Compare common component repair prices against the age and condition of your existing door:
| Failure Mode | 2026 Repair Cost | When Repair Makes Sense | When Full Replacement Wins |
|---|---|---|---|
| Broken Torsion Spring (Loud Bang, Door Won't Lift) | $250 – $550 (pair) | Door panels are straight, rust-free, and under 15 years old (always replace both springs together) | Door is 20+ years old, rusted at the bottom section, or uses obsolete dangerous extension springs |
| Single Dented Bottom or Middle Panel | $350 – $850 (1 panel) | Door is under 5–7 years old and the exact stamped model/color is still manufactured | Two or more panels are creased, or the panel model is discontinued (2 panels often cost 70% of a complete new door) |
| Dead Garage Door Opener Motor / Stripped Gear | $380 – $750 (new opener) | Door balances smoothly by hand halfway up when the red emergency release cord is pulled | Door binds in the tracks or slams shut when disconnected (fix springs/tracks before burning out a new opener) |
| Off-Track Rollers & Frayed Lift Cables | $200 – $450 | Tracks are plumb and unbent; replace worn plastic rollers with 11-ball nylon rollers | Vertical tracks are twisted and sections are buckled from a vehicle impact |
Here is the line-by-line breakdown for the most common residential upgrade: replacing a 20-year-old 16×7 double door with an R-12/R-16 insulated steel door, new tracks/springs, a new Wi-Fi belt-drive opener, and old door haul-away:
| Line Item | 2026 Planning Range |
|---|---|
| 16×7 insulated steel double door, tracks, torsion springs & install | $1,450 – $3,100 |
| New DC belt-drive smart opener + UL 325 photo-eyes | $380 – $750 |
| Tear-down & haul-away of old 16×7 door & hardware | $100 – $250 |
| Turnkey installed planning total | $1,930 – $4,100 |
If your existing opener was manufactured after 1993, has working UL 325 auto-reverse photo-eyes, and runs quietly, reconnecting it to the new door saves $380 to $750.
Garage door insurance claims follow a surprising split depending on who hit the door and what caused the damage:
The calculator's default garage door replacement job, repriced for each of its six regions. At the national average it runs $2,108 – $4,100; South / Lower Midwest is the lowest at $1,834 – $3,567, and West Coast metro is the highest at $2,740 – $5,330, a gap of about $1,334 at the midpoint.
| Region | Planning range | Midpoint |
|---|---|---|
| National average | $2,108 – $4,100 | $3,104 |
| South / Lower Midwest | $1,834 – $3,567 | $2,700 |
| Mountain / Plains | $2,003 – $3,895 | $2,949 |
| Mid-Atlantic / Upper Midwest | $2,361 – $4,592 | $3,476 |
| Northeast metro | $2,656 – $5,166 | $3,911 |
| West Coast metro | $2,740 – $5,330 | $4,035 |
Every other input stays at its default and only “Material & insulation” changes. The cheapest choice, 1-layer non-insulated steel (R-0), comes to $1,643 – $2,938; the most expensive, Solid cedar / hemlock wood, comes to $4,355 – $8,750.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| 1-layer non-insulated steel (R-0) | $1,643 – $2,938 | −$814 |
| 3-layer polyurethane insulated steel (R-12 to R-18) (default) | $2,108 – $4,100 | — |
| Carriage faux-wood composite overlay (R-14) | $3,193 – $6,270 | +$1,628 |
| Full-view aluminum & tempered glass | $3,890 – $7,820 | +$2,751 |
| Solid cedar / hemlock wood | $4,355 – $8,750 | +$3,448 |
Every other input stays at its default and only “Door size / bay width” changes. The cheapest choice, Single-car door (8×7 or 9×7 ft), comes to $1,530 – $3,000; the most expensive, Three-car setup (double + single bay), comes to $3,118 – $6,050.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Single-car door (8×7 or 9×7 ft) | $1,530 – $3,000 | −$839 |
| Double-car door (16×7 ft) (default) | $2,108 – $4,100 | — |
| Three-car setup (double + single bay) | $3,118 – $6,050 | +$1,480 |
Using the default job, a $1,000 deductible and a 25-year expected life. At 10 years old, about $1,242 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.
| Age | Wear | First check | Held back |
|---|---|---|---|
| 2 years | 8% | $1,856 | $248 |
| 5 years | 20% | $1,483 | $621 |
| 10 years | 40% | $862 | $1,242 |
| 15 years | 60% | $242 | $1,862 |
| 20 years | 80% | $0 | $2,483 |
| 30 years | 80% | $0 | $2,483 |
Garage door quotes are easiest to compare with the same size and panel construction.
| Stage | Typical time | What happens |
|---|---|---|
| Measuring | 30 minutes | Opening and headroom. |
| Ordering | 1 – 4 weeks | Custom colors and glass take longer. |
| Installation | 4 – 6 hours | Most doors in one visit. |
| Opener | +1 – 2 hours | If replaced. |
Ask the installer to test the auto-reverse and balance the door before leaving.
A standard 16x7 double-car garage door costs $1,350 to $2,100 installed in non-insulated steel, $1,800 to $3,500 in 3-layer polyurethane insulated steel (R-12 to R-18), and $3,600 to $7,500+ in custom carriage composite or full-view tempered glass, including new tracks, torsion springs, and old door disposal.
If your opener is more than 12 to 15 years old, uses a noisy chain drive, or lacks battery backup and modern rolling-code security, replacing it while the crew is already on site ($380 to $750) saves a separate service call charge later.
Only if the door is under 5 to 7 years old, the manufacturer still stamps that exact panel profile and color fade matches, and the tracks/springs are undamaged. If two panels are damaged, buying two replacement sections plus labor usually costs 70% to 85% as much as a brand-new 4-panel door with all new hardware.
Professional replacement of a matched pair of overhead torsion springs costs $250 to $550 including labor and rebalancing. Never attempt DIY torsion spring winding without proper winding bars, and always replace both springs on a two-spring shaft so the door lifts evenly.
In moderate climates, R-9 to R-12 (polystyrene or thin polyurethane) is sufficient. In cold northern winters or hot southern summers—especially when a bedroom sits above the garage—choose a 3-layer polyurethane door rated R-14 to R-18.4 with full perimeter weatherstripping.
Yes, if you live in Florida (Miami-Dade HVHZ or WBD regions), coastal Texas, the Gulf Coast, or high-wind Midwest zones. Wind-code doors include heavy horizontal steel U-struts on every panel and reinforced track brackets ($250 to $650 extra) to prevent the wide door from blowing inward and pressurizing the roof during a hurricane.
Repairing is cheaper when the problem is a spring, cable, roller or opener. Replace the door when panels are cracked, rusted through or badly dented, or when you need insulation the old door does not have.
Usually, yes, as sudden damage. If another driver hit it, claim on their auto liability first. If you hit it yourself, the door is normally a homeowners claim and your car is an auto claim, each with its own deductible.
A new opener installed commonly costs $300 to $900, depending on the drive type (chain, belt or wall-mounted jackshaft), horsepower and smart features. Replacing it with the door avoids a second labor charge.
A well-maintained steel door commonly lasts 20 to 30 years. Springs are rated in cycles and often need replacing every 7 to 12 years, sooner on a door that opens many times a day.
