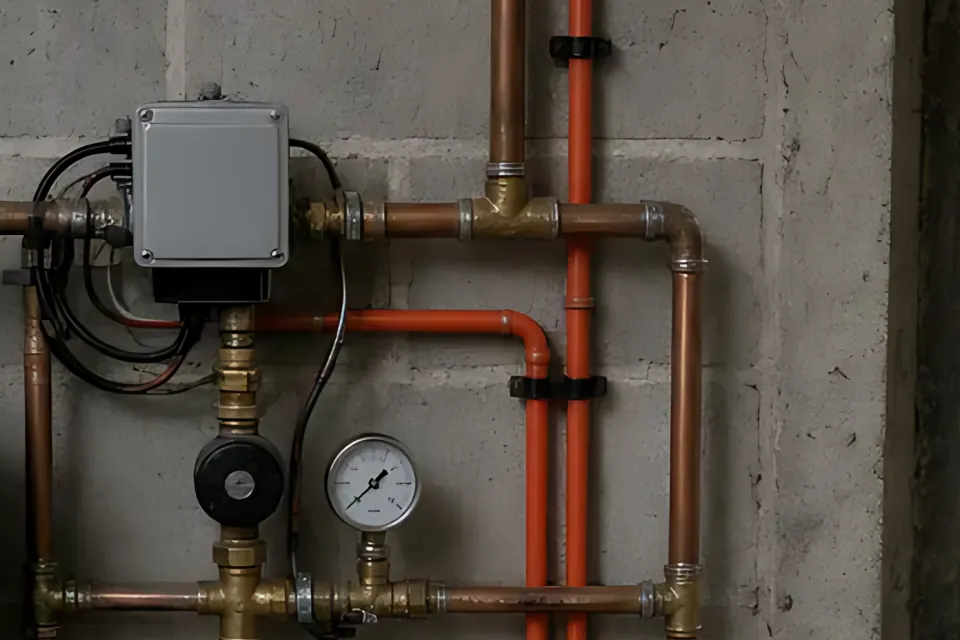

Depth and horsepower
A pump quote without set depth is not comparable to another quote. Horsepower follows the depth and the fixtures, not a catalog default.
Home › Well pump
Submersible · Pressure tank · Depth · LightningWell pump and pressure tank cost calculator
Replacing a residential submersible well pump commonly costs $1,200 to $4,500 installed, and more when the pump sits several hundred feet down. A pressure tank is often $600 to $2,000 on top of that, or on its own if the pump is fine. Lightning and other sudden electrical damage are a different question from a pump that simply wore out. A sediment filter or softener belongs on the water filter calculator.
Reviewed 25 October 2026 · Written by Mantu Kumar
See the photo · See the cost diagram · Open the calculator
Written and maintained byMantu Kumar
Evidence review17 October 2026
Calculation rulesRead the methodology
Quality standardEditorial policy
Key facts at a glance
- Shallow or easy pull: about $900–$1,800 for many jet or shallow submersible swaps.
- Typical submersible: about $1,400–$2,800 when the crew pulls the pipe and wire.
- Deep set, roughly 300–500 ft: often $2,200–$5,000 because of the drop pipe, wire and time.
- Pressure tank: about $600–$2,000 installed for a common bladder tank. This is not a water heater.
- Lightning: a sudden surge that kills the pump can be a covered electrical loss. A 15-year-old pump that quits is usually wear.
2026 planning bands for residential pump and tank replacement. Depth and access dominate. No national price fits every well.
2026 planning ranges
- 1Submersible pump · avg ~$1,900 installed
- 2Drop pipe, wire & rope
- 3Pitless adapter & cap
- 4Pressure tank · $600–$2,000 installed
- 5Switch, gauge, control box
- 6Over 150 ft deep · $2,000–$10,000+
- 7Chlorinate + test
- 8Short cycling
- 9Constant-pressure pump
- Depth drives pipe, wire and labor.
- Tank size is drawdown, not “bigger is softer water.”
- Filter is downstream. Price it on its own page.
Well pump and tank estimator
No email · nothing sentDiagram, part by part
Well pump and pressure tank: every numbered part explained
The well pump and pressure tank drawing above has 9 numbered parts, from Submersible pump to Constant-pressure pump option. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.
1 Submersible pump
avg ~$1,900 installed
The submersible pump sits deep in the well and pushes water up to the house. Horsepower and stages depend on well depth and household demand.
What moves it: Well depth, water level and demand.
On the quote: Ask for horsepower, flow rate and the depth the pump is set at.
2 Drop pipe, wire & rope
Often replaced with the pump
Drop pipe, wire and a safety rope hang the pump in the well. They are often replaced with the pump because pulling it is the costly part.
What moves it: Well depth and the condition of the old pipe.
On the quote: Check whether pipe and wire are replaced and the material used.
3 Pitless adapter & cap
Part of the job
A pitless adapter carries the water line out of the casing below the frost line; the sealed well cap keeps insects and surface water out.
What moves it: Casing size and condition.
On the quote: Ask whether the cap is sealed and vented properly.
4 Pressure tank
$600–$2,000 installed
A pressure tank stores water under pressure and reduces how often the pump starts, which extends pump life.
What moves it: Household size and pump flow.
On the quote: Ask for tank size and drawdown.
5 Switch, gauge, control box
Part of the controls
The pressure switch, gauge and control box run the pump between set pressures, often 40 and 60 psi.
What moves it: Pump type and the existing controls.
On the quote: Check the pressure settings and whether the control box is replaced.
6 Over 150 ft deep
$2,000–$10,000+
Deeper wells need bigger pumps, more pipe and wire, and heavier pulling equipment, which raises the price quickly.
What moves it: Well depth and pump setting.
On the quote: Ask for the well depth and the depth the pump will be set at.
7 Chlorinate and test run
$100–$250
Opening a well can introduce bacteria, so the well is shock-chlorinated after the work and the system is test-run for flow and pressure. A water test a week or two later confirms it is safe.
What moves it: Well size and local health rules.
On the quote: Ask whether chlorination and a follow-up bacteria test are included.
8 Short cycling and pump life
Shortens pump life
A waterlogged pressure tank or a bad switch makes the pump turn on and off rapidly, which burns out motors early. Fixing the tank is far cheaper than replacing the pump again.
What moves it: Tank condition and switch settings.
On the quote: Ask the installer to check tank air charge and cycling time.
9 Constant-pressure pump option
Costs more up front
Variable-speed constant-pressure systems adjust pump speed to keep steady pressure at every tap and allow a smaller pressure tank. They cost more and use more electronics.
What moves it: Household demand and how much pressure swings bother you.
On the quote: Ask about the controller warranty and surge protection.

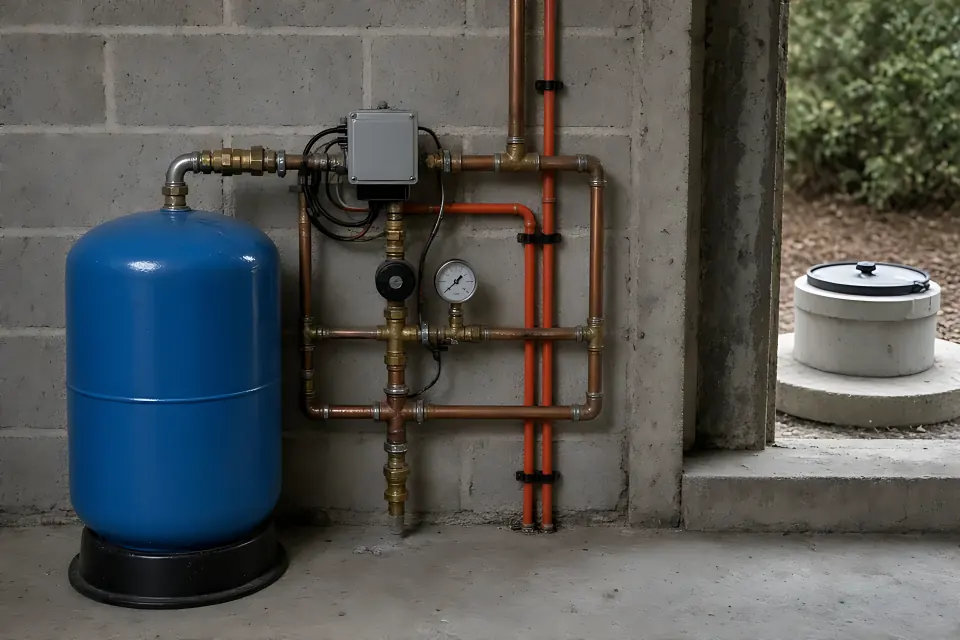

Pump and tank
The tank is in the room. The pump is in the ground.
A pressure gauge, a switch and a blue tank are what you can see. The expensive part is whatever has to be pulled up the casing. Ask the quote to name the depth and whether the drop pipe and wire are new.
Three lines that should be on the invoice. These close-ups are crops of the same AI-generated illustration.

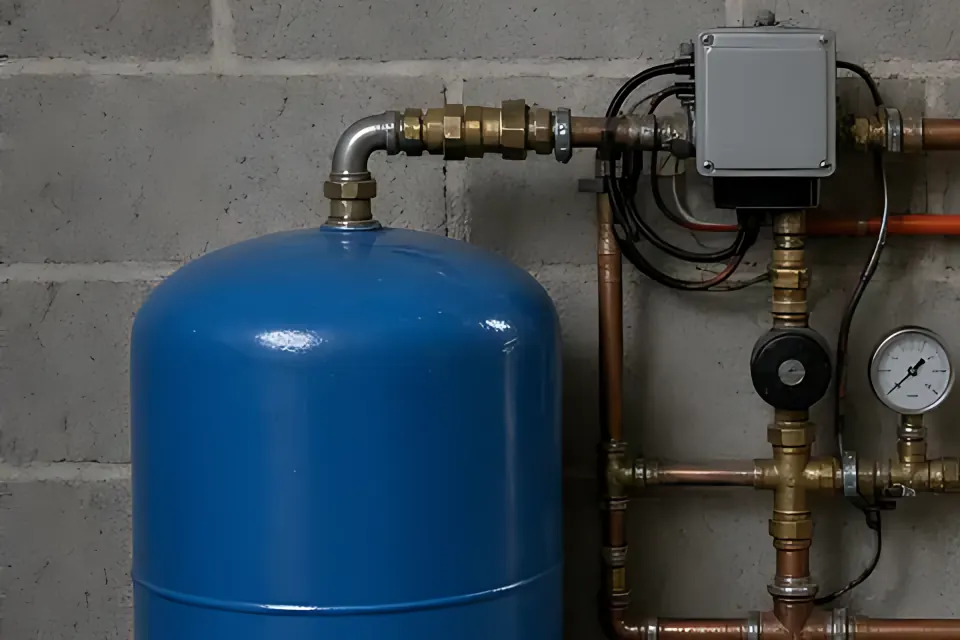

Tank or reuse
A waterlogged bladder tank short-cycles a new pump. Replacing both is often the repair. Reusing a good tank is fair if the quote says so.

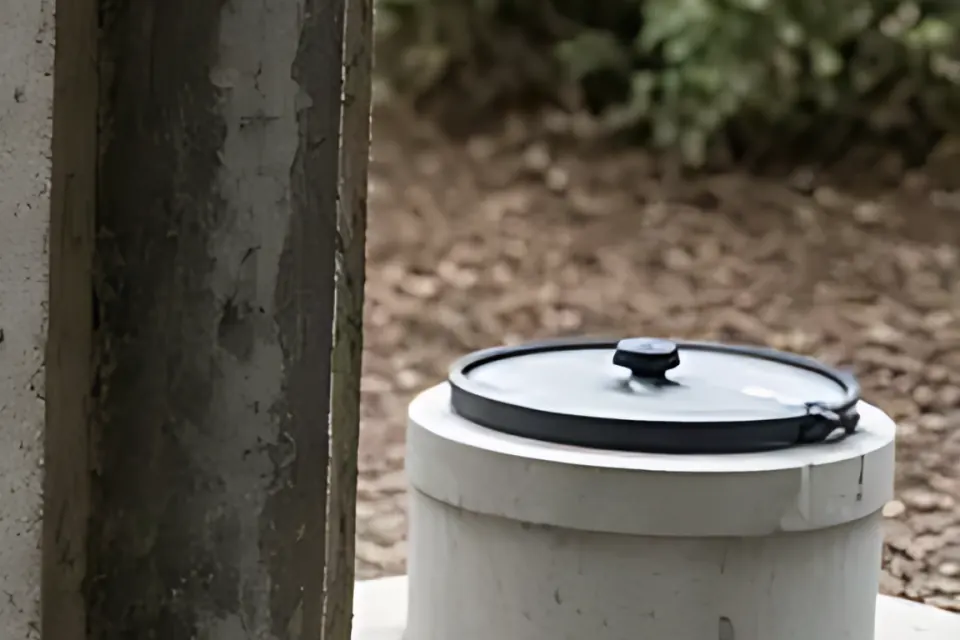

Surge and the well cap
A lightning claim wants the damaged pump, the control box and photos. A missing cap or a rusty casing is a different, often uninsured, problem.
Before you sign a quote or file a claim, verify these three details
- Depth
- Feet to the pump, written down.
- What is reused
- Tank, wire, pitless adapter, control box.
- Disinfection
- Chlorination after the well is opened.
On this page
- 2026 pump costs
- Pump, tank, surge
- Worked example
- Insurance
- Well pump cost by region
- What “Pump” does to the price
- What “Pressure tank” does to the price
- How age changes the well pump claim payout
- Quote checklist: 6 items to verify
- How long the job takes
- Common mistakes that raise the cost
- Ways to keep the cost down
- Signs the well pump is failing
- Sources
- Questions
Well pump and tank cost (2026)
| Item | Planning range | Notes |
|---|---|---|
| Shallow pump swap | $900 – $1,800 | Short pull |
| Typical submersible | $1,400 – $2,800 | Pipe and wire |
| Deep submersible | $2,200 – $5,000 | About 300–500 ft |
| Pressure tank | $600 – $2,000 | Not a water heater |
| Control box / starter | $150 – $450 | If it died with the pump |
| Constant-pressure package | $2,000 – $4,500 | Variable speed, above a basic swap |
Pump, pressure tank, cistern or heater: which one failed
The pump lifts water. The pressure tank stores a cushion so the pump does not start at every glass. A storage cistern is a third object and lives on the water tank calculator. A water heater heats water and lives on the water heater page. A softener or sediment filter treats water and lives on the filter page. Putting all of those in one “well system” price makes the insurance question impossible, because only some of them are sudden losses.
Lightning is the sudden one. A strike or a surge that burns the motor, the wire or the control box is often a covered electrical event on an HO-3, subject to the deductible and to how the form treats outdoor equipment. A pump that has been short-cycling for two years because the tank failed is wear. Replacing both after that failure is usually maintenance, even if the day it finally quit felt sudden.
If the well also has to run during an outage, the generator has to be sized for the pump’s starting load. That is the generator calculator, not an adder here.
Worked example: typical submersible and a new 40-gallon tank
Pull, new pump, new tank
Worked example| Line | Range |
|---|---|
| Typical submersible replacement | $1,400 – $2,800 |
| Pressure tank installed | $500 – $1,200 |
| Chlorinate and test run | $100 – $250 |
| Planning total | $2,000 – $4,250 |
Midpoint about $3,125. On a 12-year-old pump with a 15-year life, an ACV policy holds back a large share. A $1,000 deductible can leave a small check or none. A documented lightning loss is the case where filing is more likely to matter, and you still compare it with the deductible before you call.
Lightning versus a tired pump
- Wear is the default. Pumps and tanks have a life. ACV depreciates them. RCV, if you have it and the loss is covered, pays the difference after the work.
- Lightning and sudden electrical damage are the peril to document: the storm date, the control box, the neighbor’s outage, the electrician’s note.
- The well itself — a dry hole, a collapsed casing — is often not the same coverage as the pump. Read the form.
- A new tank or a constant-pressure upgrade on a maintenance call is an improvement. Do not describe it as a claim.
Well pump cost by region
The calculator's default well pump job, repriced for each of its six regions. At the national average it runs $2,100 – $5,050; South / Lower Midwest is the lowest at $1,827 – $4,394, and West Coast metro is the highest at $2,730 – $6,565, a gap of about $1,537 at the midpoint.
| Region | Planning range | Midpoint |
|---|---|---|
| National average | $2,100 – $5,050 | $3,575 |
| South / Lower Midwest | $1,827 – $4,394 | $3,110 |
| Mountain / Plains | $1,995 – $4,798 | $3,396 |
| Mid-Atlantic / Upper Midwest | $2,352 – $5,656 | $4,004 |
| Northeast metro | $2,646 – $6,363 | $4,504 |
| West Coast metro | $2,730 – $6,565 | $4,648 |
What “Pump” does to the price
Every other input stays at its default and only “Pump” changes. The cheapest choice, Shallow or short pull, comes to $1,600 – $4,050; the most expensive, Deep set, long pipe and wire, comes to $2,900 – $7,250.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Shallow or short pull | $1,600 – $4,050 | −$750 |
| Typical submersible (default) | $2,100 – $5,050 | — |
| Deep set, long pipe and wire | $2,900 – $7,250 | +$1,500 |
What “Pressure tank” does to the price
Every other input stays at its default and only “Pressure tank” changes. The cheapest choice, Keep the existing tank, comes to $1,500 – $3,050; the most expensive, New bladder tank, comes to $2,100 – $5,050.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Keep the existing tank | $1,500 – $3,050 | −$1,300 |
| New bladder tank (default) | $2,100 – $5,050 | — |
How age changes the well pump claim payout
Using the default job, a $1,000 deductible and a 15-year expected life. At 10 years old, about $2,383 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.
| Age | Wear | First check | Held back |
|---|---|---|---|
| 2 years | 13% | $2,098 | $477 |
| 5 years | 33% | $1,383 | $1,192 |
| 10 years | 67% | $192 | $2,383 |
| 15 years | 80% | $0 | $2,860 |
| 20 years | 80% | $0 | $2,860 |
| 30 years | 80% | $0 | $2,860 |
Quote checklist: 6 items to verify
Well pump quotes depend on depth, so start there.
- Well depth and pump setting. Total depth and the depth the pump hangs at.
- Pump details. Horsepower, flow rate and brand.
- Pipe and wire. Whether drop pipe, wire and rope are replaced.
- Pressure tank and controls. Tank size, switch and control box.
- Chlorination and testing. Shock chlorination and a bacteria test.
- Warranty. Pump and labor coverage.
How long the job takes
| Stage | Typical time | What happens |
|---|---|---|
| Diagnosis | 1 – 2 hours | Checks power, switch, tank and pump. |
| Pump pull and replace | 3 – 8 hours | Longer for deep wells. |
| Tank and controls | 1 – 3 hours | When replaced with the pump. |
| Chlorination | 12 – 24 hours | Water not used for drinking while it sits. |
| Bacteria test | 1 – 2 weeks later | Confirms the water is safe. |
Keep bottled water for drinking until the follow-up bacteria test comes back clean.
Common mistakes that raise the cost
- Replacing the pump for a tank problem. A waterlogged tank causes short cycling that looks like a pump failure.
- Skipping chlorination. Opening the well can introduce bacteria.
- Wrong pump size. Oversized pumps cycle and undersized pumps cannot keep up.
- Ignoring the control box. A bad capacitor can mimic a dead pump.
- No surge protection. Lightning and outages damage controls.
Ways to keep the cost down
Well work is expensive mainly because the pump must be pulled.
- Test before replacing. Switches, capacitors and tanks often fail first.
- Replace pipe and wire with the pump. Avoids a second pull.
- Add a larger pressure tank. Fewer starts mean longer pump life.
- Install surge protection. Protects controls and the motor.
- Schedule non-emergency work. After-hours calls cost more.
- Keep records of depth and settings. Speeds up the next service.
Signs the well pump is failing
Check the tank and switch first.
- No water or sputtering taps. Pump or switch failure.
- Constant running. Leak or worn pump.
- Rising electric bills. Pump working harder.
- Sediment in water. Pump set too low or well issues.
- Rapid cycling. Often the pressure tank.
Sources and further reading
- NAIC — Actual cash value vs replacement cost coverage
- ReplaceCost water filter calculator
- Angi — Well pump replacement cost
- HomeGuide — Water tank and pressure tank replacement cost
Frequently asked questions
How much does it cost to replace a well pump in 2026?
Many residential jobs run $1,200 to $2,800. Deep pumps often run $2,200 to $5,000 because of the pipe, wire and time.
How much is a well pressure tank?
About $600 to $2,000 installed for a common bladder tank. It is not a water heater and not a storage cistern.
Does homeowners insurance cover a well pump?
A pump that wore out, usually no. A pump destroyed by lightning or another covered sudden event, often yes, minus depreciation and the deductible.
How long does a well pump last?
Often around 10 to 15 years, sometimes longer in an easy well. The calculator uses 15 years for straight-line ACV.
Do I have to replace the tank with the pump?
Not always. A failed tank ruins a new pump by short-cycling it, so many crews replace both when the tank is old.
Is a whole-house filter part of the pump quote?
It should not be. Price filters and softeners on the water filter calculator so you can see them.
Is it the pressure tank or the well pump?
If the pressure switch clicks on and off quickly while a tap runs, the tank bladder or air charge is the likely problem. If there is power at the switch but no pressure at all, suspect the pump or wiring.
What size pressure tank does a 3-bedroom house need?
Many 3 to 4 bedroom homes use a 44 to 62 gallon tank. The goal is enough drawdown for at least a minute of pump run time, which protects the motor.
Are constant-pressure well pumps worth it?
They hold steady pressure with a smaller tank, which helps when showers and irrigation run together. The drive electronics cost more and are sensitive to surges, so add surge protection.
How much does it cost to replace a well pump and pressure tank together?
For a typical submersible pump and a common bladder tank, plan on roughly $2,000 to $4,800: about $1,400 to $2,800 to pull and replace the pump, plus $600 to $2,000 for the tank. A deep-set pump at 300 to 500 feet can push the pump line alone to $5,000. Doing both on one visit usually saves a second service call, and it protects the new pump, because a failed tank makes the pump short-cycle.
Can I replace a well pump myself?
Shallow jet pumps above ground are sometimes owner-replaced. Submersible pumps hang hundreds of feet down on pipe and wire and need pulling equipment, so most owners hire a licensed well contractor, and some states require one.
What is a pitless adapter?
A fitting on the well casing that lets the water line leave the well below the frost line while keeping the casing sealed at the top. It also lets the pump and pipe be pulled straight up for service.
How deep are most wells?
Depth varies widely, from under 100 feet in some areas to several hundred feet in others. The original well log, often on file with the state or county, lists depth, casing and the static water level.
What does a control box do?
Three-wire submersible pumps use a control box with a start capacitor and relay to start the motor. A failed capacitor can make a good pump look dead, so it is one of the first things a contractor tests.
Do well pumps need maintenance?
Pumps themselves need little maintenance, but checking the pressure tank air charge, switch contacts and water quality each year helps them last longer.
What is a jet pump?
A pump mounted above ground that pulls water up from a shallow well using suction. Deep wells use submersible pumps instead.
How much power does a well pump use?
It depends on horsepower and how long it runs. Short cycling and leaks raise use, so a sudden jump in the electric bill can point to a problem.
Related planning tools
Next steps for your estimate
Use the companion calculators when the job touches another part of the house or the claim.
Water filter calculatorSediment, carbon or a softener.Water storage tank calculatorA cistern or a larger storage tank, not the heater.Water heater calculatorIf the problem is hot water, not pressure.Generator calculatorStarting watts for the pump in an outage.Electrical panel calculatorA surge that also took the panel.Claim gap calculatorFirst check after depreciation.
Key topics covered
Popular well pump searches answered on this page
Planning topics covered in the calculator and guide above.
well pump replacement costsubmersible well pump installation costwell pressure tank replacement costdoes insurance cover well pump lightningdeep well pump replacement costcost to pull a well pump
well pump and pressure tank replacement costwell pump and motor replacement cost
