Retaining wall replacement & rebuild cost calculator

Retaining walls are priced by the vertical square foot of wall face (length × height), not just linear feet: a 30-foot-long by 4-foot-tall (120 sq ft) interlocking concrete block wall runs $4,800 to $9,600 installed with washed drainage gravel and a perforated footing pipe. Price your wall by material, height, and demolition scope—and check why 4 feet is the universal permit and engineering cutoff.

Reviewed 25 October 2026 · Written by Mantu Kumar

See the illustrated inspection guide · Interactive system diagram

Written and maintained byMantu Kumar

Evidence review16 October 2026

Calculation rulesRead the methodology Quality standardEditorial policy

Key facts at a glance

• Pressure-treated 6×6 timber tie wall runs $25–$48 per sq ft of wall face ($3,000–$5,760 for a 30×4 ft wall; 15–20 yr life).
• Segmental Interlocking Concrete Block (SRW / Allan Block / Versa-Lok) runs $38–$78 per sq ft of face ($4,560–$9,360 for 120 sq ft; 40–50+ yr life).
• Poured reinforced concrete or mortared natural stone runs $50–$115 per sq ft of face ($6,000–$13,800+ for 120 sq ft).
• The 4-Foot Engineering Rule (IBC 1807.2): Walls over 4 feet tall (measured from the bottom of the footing) require a municipal building permit, licensed PE structural engineering ($900–$2,400), and horizontal geogrid reinforcement mesh.
• Homeowners Insurance Rule: Standard HO-3 policies exclude retaining wall collapse from hydrostatic soil/water pressure, tree roots, and frost heave—coverage applies only to sudden vehicle impact or falling trees under Coverage B Other Structures.

Sources: 2026 International Building Code (IBC Section 1807.2 Retaining Walls), National Concrete Masonry Association (NCMA) SRW design manual, and U.S. hardscape contractor benchmarks.

2026 planning ranges

1. 1Units, pad, stone & pipe · per sq ft face
2. 212-in drainage stone + fabric
3. 3Perforated pipe to daylight
4. 4Geogrid layers over 4 ft
5. 5Old wall torn out & hauled
6. 6Cap units & batter setback
7. 7Timber, block, concrete or stone
8. 8Site access
9. 9Driveway, slope or pool above

Per sq ft of face: Timber $25–$48 Block $38–$78 Poured $50–$105 Stone $45–$110

Retaining wall replacement & drainage cost estimator

No email · nothing sent

Work out the cost & payout

Diagram, part by part

Retaining wall replacement & rebuild: every numbered part explained

The retaining wall replacement & rebuild drawing above has 9 numbered parts, from Units, pad, stone & pipe to Loads above the wall. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.

1. 1 Units, pad, stone & pipe

   per sq ft face

   Block units, a compacted leveling pad, drainage stone and pipe are priced together per square foot of wall face. The leveling pad under the first course decides whether the wall stays straight.

   What moves it: Wall face area, material and site access.

   On the quote: Compare face square footage, not just length, and ask how the leveling pad is built.

2. 2 12-in drainage stone + fabric

   Included in the wall price

   About a foot of clean stone behind the wall lets water drain down instead of building pressure behind it. Fabric between the stone and the soil keeps fine soil from clogging the stone.

   What moves it: Wall height and soil type.

   On the quote: Ask for fabric between the stone and soil and how wide the stone zone is.

3. 3 Perforated pipe to daylight

   Included in the wall price

   A perforated pipe at the base collects water and carries it out to daylight or a drain. Without an outlet, water builds up and pushes the wall over.

   What moves it: Wall length and the distance to an outlet.

   On the quote: Check where the pipe drains and that the outlet will stay clear.

4. 4 Geogrid layers over 4 ft

   Walls over about 4 feet need geogrid layers laid back into the compacted soil, and most towns require an engineered design and a permit.

   What moves it: Wall height, soil and loads above the wall.

   On the quote: Ask whether an engineered design and permit are included.

5. 5 Old wall torn out & hauled

   The old timber or concrete wall must be taken down and hauled away before the new one goes in, and the soil behind it supported while work is done.

   What moves it: Old wall material, length and access.

   On the quote: Confirm demolition and haul-away are priced.

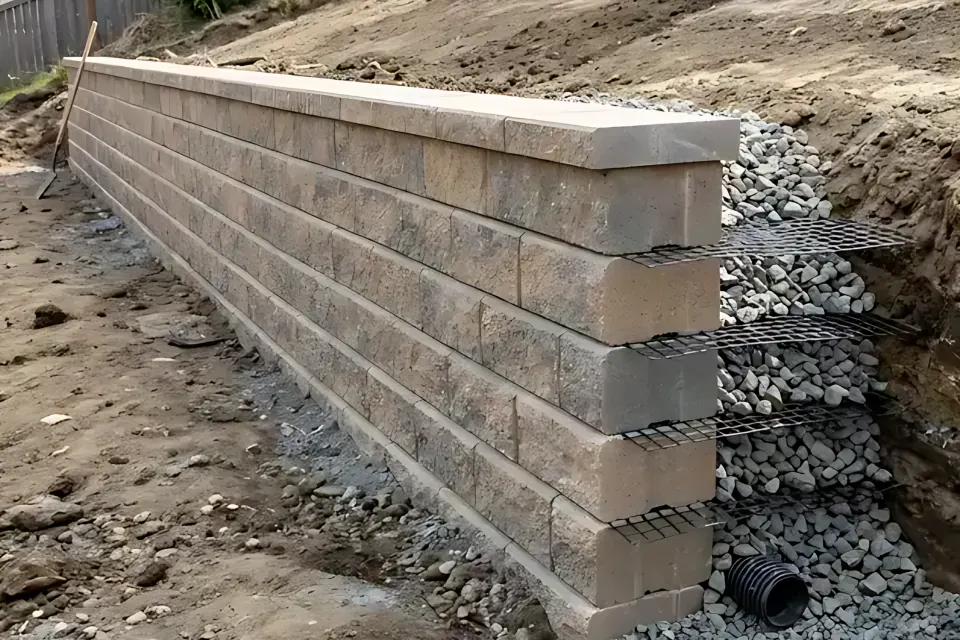

6. 6 Cap units & batter setback

   Included in the wall price

   Cap units finish the top and are glued down. Each course steps back slightly, called batter, so the wall leans into the hill.

   What moves it: Block system and wall height.

   On the quote: Check the cap adhesive and the setback per course.

7. 7 Wall material

   $25–$105 per sq ft of face

   Timber ties are cheapest but rot in 15 to 25 years. Segmental block is the most common for homes. Poured concrete and mortared block with veneer cost the most, and stacked stone depends heavily on local material.

   What moves it: Material, height and the look you want.

   On the quote: Ask for the expected life of the material and the manufacturer's height limits.

8. 8 Site access and equipment

   Tight sites cost more

   Excavators, skid steers and stone deliveries need a path to the wall. Tight backyards mean smaller machines and more hand work, which raises labor.

   What moves it: Gate width, slope and distance from the street.

   On the quote: Ask how material and machines will reach the wall and who repairs the lawn.

9. 9 Loads above the wall

   May need engineering

   A driveway, parked cars, a steep slope or a pool above the wall adds pressure, called surcharge. Even a shorter wall may then need geogrid and an engineered design.

   What moves it: What sits above the wall and how close it is.

   On the quote: Tell the contractor about any loads above the wall before they design it.

What stands behind the blocks

Why 80% of retaining walls fail from missing drainage stone—not weak blocks

A retaining wall does not just hold back dry dirt—after a heavy rainstorm, clay soil behind an un-drained wall holds thousands of pounds of hydrostatic water pressure. Without 12 inches of washed angular gravel and a perforated footing pipe, even solid concrete leans and cracks.

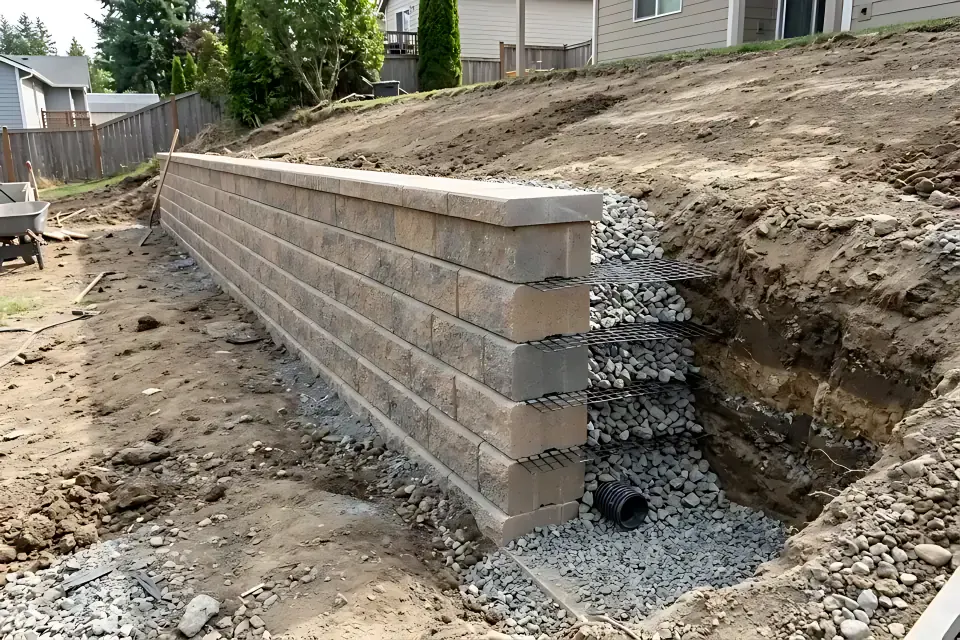

Zoom in on three spots in the photo: these are the lines a retaining wall replacement & rebuild bid should spell out. These close-ups are crops of the same AI-generated illustration.

01 Face area & embedment

Include the buried base course in height

A wall standing 3.5 feet above the grass actually requires 4 feet of block height because the bottom 6 inches must be buried in a trench below grade so the toe of the wall cannot slide forward.

02 Geogrid & 4-foot code rule

Walls over 4 ft need geogrid & a PE stamp

Under IBC Section 1807.2, retaining walls over 4 feet tall (measured from the bottom of the footing) require a building permit, structural engineer (PE) plans, and biaxial geogrid mesh extending 4 to 8 feet back into the slope.

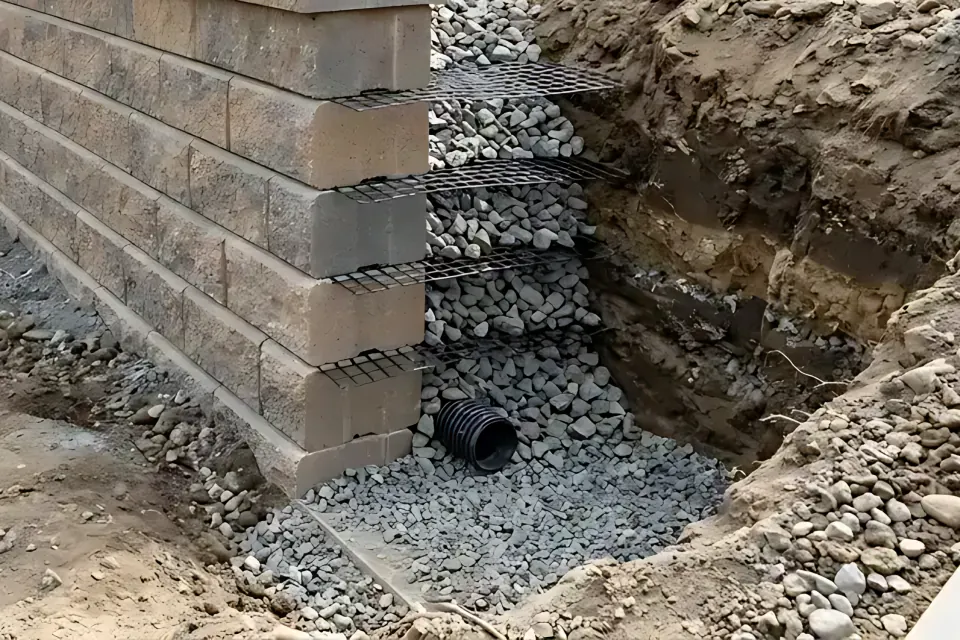

03 Footing drain & gravel pad

Reject dirt backfilled directly against block

Never let a landscaper shovel native clay dirt right up against the back of the blocks. Require non-woven geotextile filter fabric separating the native soil from at least 12 inches of clean 3/4-inch crushed drainage stone.

Before you sign a quote or file a claim, verify these three details

Drainage stone & pipe

Whether the quote explicitly includes 12 inches of washed angular drainage stone, geotextile filter fabric, and a 4-inch perforated rigid PVC or corrugated drain pipe daylighted to grade

Geogrid & engineering (>4 ft)

Whether walls over 3.5 to 4 feet tall include horizontal geogrid reinforcement layers and stamped Professional Engineer (PE) drawings for the city permit

Old wall haul-away & access

Whether demolition and disposal of rotted railroad ties or cracked concrete—and mini-excavator backyard access—are included in the price

Adding a privacy fence or guardrail on top of the wall? Open the Fence Cost Calculator →

Retaining wall replacement cost per square foot by material (2026)

Why crossing 4 feet in height triggers permits, geogrid and a structural engineer

Soil pressure behind a retaining wall increases with the square of the wall height. Under Section 1807.2 of the International Building Code (IBC), walls over 4 feet tall (measured from the bottom of the footing) require a municipal building permit, licensed PE design ($900–$2,400), and horizontal geogrid reinforcement layers.

Worked example: 30 ft long × 4 ft tall (120 sq ft) interlocking concrete block wall

Does homeowners insurance cover a leaning or collapsed retaining wall?

• Excluded Earth Movement & Hydrostatic Water Pressure: If heavy rain, groundwater buildup, frost heave, tree roots, or rotting railroad ties cause a retaining wall to lean or collapse, standard HO-3 policies deny the claim.
• Covered Perils (Vehicle Impact, Fallen Tree, Fire): If a car slides off the driveway and smashes the wall, or a windstorm uproots a tree that crushes the blocks, Coverage B covers the repair.

Retaining wall cost by region

The calculator's default retaining wall job, repriced for each of its six regions. At the national average it runs $5,160 – $10,800; South / Lower Midwest is the lowest at $4,489 – $9,396, and West Coast metro is the highest at $6,708 – $14,040, a gap of about $3,432 at the midpoint.

What “Wall material” does to the price

Every other input stays at its default and only “Wall material” changes. The cheapest choice, Pressure-treated 6×6 timber ties (up to 4 ft), comes to $3,600 – $7,200; the most expensive, Natural fieldstone or stacked boulders, comes to $7,800 – $17,640.

What “Old wall tear-out & site access” does to the price

Every other input stays at its default and only “Old wall tear-out & site access” changes. The cheapest choice, New wall (no old wall tear-out), comes to $4,560 – $9,360; the most expensive, Break out & haul old concrete / stone wall ($10–$22/sq ft), comes to $5,760 – $12,000.

How age changes the retaining wall claim payout

Using the default job, a $1,000 deductible and a 45-year expected life. At 10 years old, about $1,773 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.

Quote checklist: 7 items to verify

Retaining wall quotes should show what is behind the wall, not only the face.

1. Face area and height. Square feet of face and the tallest section.
2. Material. Block system, poured concrete, timber or stone.
3. Base and leveling pad. Depth and material.
4. Drainage. Stone zone, fabric and pipe outlet.
5. Geogrid and engineering. For tall walls or loads above.
6. Old wall removal. Demolition and haul-away.
7. Permit and restoration. Permit, inspections and landscape repair.

How long the job takes

Ask the contractor to show the drainage stone and pipe before backfill; it is the part you never see again.

Common mistakes that raise the cost

• No drainage. Water pressure behind a wall is the main cause of failure.
• Shallow base. A poor leveling pad lets the wall shift.
• Tall walls without design. Walls over about 4 feet usually need engineering.
• Ignoring loads above. Driveways and slopes add pressure.
• Timber for permanent walls. Wood rots far sooner than block or concrete.

Ways to keep the cost down

Wall costs depend on height and drainage.

• Keep walls under 4 feet. Avoid engineering.
• Terrace tall slopes. Two short walls.
• Use segmental block. Lower cost.
• Plan drainage. Prevents failure.
• Improve access. Less hand work.
• Reuse soil. Less hauling.

Signs a retaining wall is failing

Act before it collapses.

• Leaning. Pressure.
• Bulging. Drainage failure.
• Cracks. Movement.
• Soil washing out. Drainage issue.
• Rotting timbers. Wood failure.
