Identify vertical drop vs lateral bowing
Vertical cracks wider at the top point to footing settlement; horizontal cracks mid-way up a block wall point to lateral soil and hydrostatic frost pressure.
Home › Foundation & waterproofing
French drains · Sump pumps · Steel piersFoundation repair and basement waterproofing cost calculator
Estimate the cost to waterproof a wet basement or stabilize a settling foundation: interior perimeter drain tile and sump pump systems, exterior excavation and membranes, carbon-fiber wall straps, and hydraulic steel push or helical piers—plus what homeowners insurance covers.
Reviewed 25 October 2026 · Written by Mantu Kumar
Written and maintained byMantu Kumar
Evidence review14 October 2026
Calculation rulesRead the methodology
Quality standardEditorial policy
Key facts at a glance
- An interior perimeter French drain and sump pump runs $65–$135 per linear foot ($5,200–$10,800 for an 80-foot basement perimeter).
- Exterior foundation excavation and membrane waterproofing runs $150–$320 per linear foot ($12,000–$25,600 for 80 linear feet).
- Hydraulic steel push piers or helical piers for a settling foundation wall cost $1,400–$2,800 per pier installed (typically spaced every 6 to 8 feet).
- Carbon-fiber straps or steel I-beam wall braces for bowing basement block walls cost $600–$1,350 per strap/brace.
- Standard HO-3 insurance excludes earth movement and groundwater seepage, but Water/Sewer Backup endorsements ($5,000–$25,000) cover failed sump pumps and backed-up floor drains.
Sources: FEMA Building Science guidance, U.S. HUD Residential Foundation Design manual, and 2026 waterproofing/structural contractor benchmarks.
2026 planning ranges
- 1Interior French drain · per linear ft
- 2Sump, pump & battery backup
- 3Exterior membrane & footing drain
- 4Wall braces or straps · $650–$1,300 ea
- 5Push or helical piers · $1,450–$2,750 ea
- 6Engineer, permit & haul-away
- 7Perimeter length
- 8Gutters + grading
- 9Crack injection (not priced)
Water first: A dry wall stops pushing. Braces hold a wall; piers lift a footing. Different jobs.
Foundation repair & basement waterproofing estimator
No email · nothing sentDiagram, part by part
Foundation repair and basement waterproofing: every numbered part explained
The foundation repair and basement waterproofing drawing above has 9 numbered parts, from Interior French drain to Crack injection. Each card below frames one of them, and after you run the calculator it shows what that part adds to your estimate.
1 Interior French drain
per linear ft
An interior drain is installed along the footing inside the basement: the slab edge is cut, a perforated pipe is laid in stone, and a wall flange directs wall seepage into it. It collects water before it rises through the floor.
What moves it: Perimeter length, slab thickness and access.
On the quote: Ask how the wall flange connects to the drain and whether the slab is restored.
2 Sump, pump & battery backup
A sump basin and pump lift the collected water out to the yard. A battery backup pump keeps it running during power outages, which is when storms usually hit.
What moves it: Pump type, backup choice and discharge distance.
On the quote: Ask for the pump brand, the backup type and where the discharge exits.
3 Exterior membrane & footing drain
An exterior membrane and footing drain stop water at the outside face of the wall. It requires excavating around the house, which costs more but keeps water out of the wall entirely.
What moves it: Wall depth, perimeter length and landscaping in the way.
On the quote: Ask what membrane is used and how the excavation and landscaping are restored.
4 Wall braces or straps
$650–$1,300 ea
Steel braces or carbon-fiber straps stop bowing walls from moving further. They are usually spaced every few feet along the affected wall.
What moves it: Number of braces or straps and how far the wall has moved.
On the quote: Ask for brace spacing and whether an engineer specified the design.
5 Push or helical piers
$1,450–$2,750 ea
Steel push piers or helical piers are driven to stable soil and connected to the footing to support or lift a settling foundation.
What moves it: Number of piers, depth to stable soil and access.
On the quote: Ask for pier depth and load testing results after installation.
6 Engineer, permit & haul-away
Engineering, permits and haul-away of excavated soil are separate lines on structural work and are easy to leave out of a low bid.
What moves it: Project type and your town's requirements.
On the quote: Ask whether an engineer's letter is included and who pulls the permit.
7 Perimeter length
Drainage priced per linear foot
Drain systems are priced by the linear foot of wall they protect. Treating only the wet wall costs less, but water often moves to the next dry wall, so many contractors recommend the full perimeter.
What moves it: How many walls leak and the total basement perimeter.
On the quote: Ask which walls are covered and why the rest are left out.
8 Gutters and grading first
Cheapest water fix
Clogged gutters, short downspouts and soil sloping toward the house send water straight to the foundation. Fixing them is far cheaper than a drain system and should come first.
What moves it: Roof drainage and the slope of the yard.
On the quote: Ask the contractor to check gutters and grading before recommending a drain system.
9 Crack injection
Not in this estimate
Single leaking cracks in poured concrete walls can often be sealed from the inside with polyurethane or epoxy injection, for far less than a full drainage system. It does not help block walls or wide structural cracks.
What moves it: Crack width, length and wall type.
On the quote: Ask whether crack injection would fix a single leaking crack before buying a full system.
Drainage vs structural load
Separate groundwater seepage from structural settlement before you price a fix
A wet basement floor and a stair-step brick crack come from two different forces: hydrostatic water pressure pushing inward versus soil shrinkage or washout dropping the footing downward.
Three parts of the same picture, each tied to a line on a foundation repair and basement waterproofing estimate. These close-ups are crops of the same AI-generated illustration.

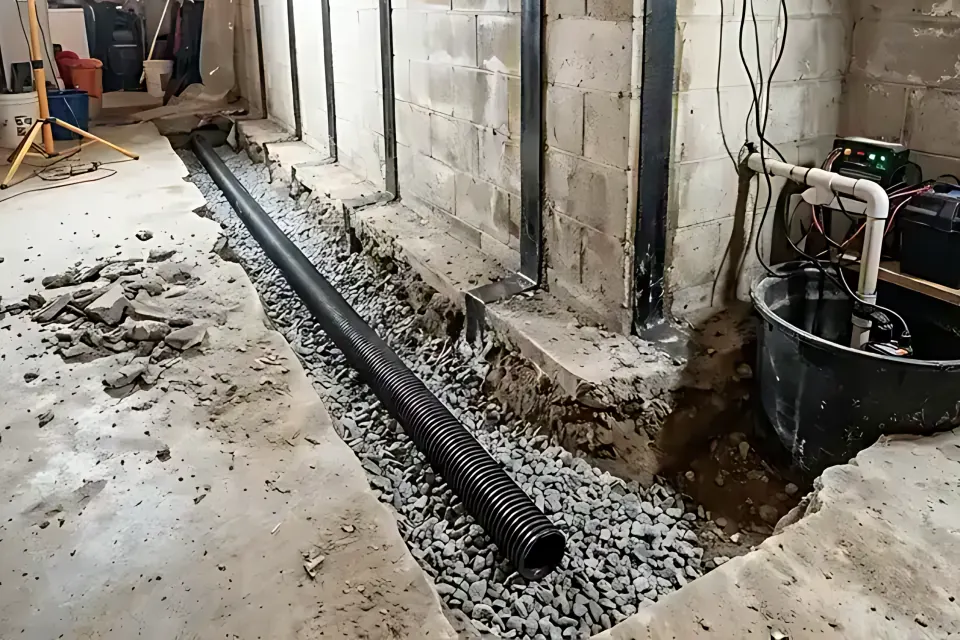

Check discharge routing and battery backup
An interior French drain relieves cove-joint water pressure into a sump pit. Always include a DC battery or water-powered backup pump so storm outages don't flood the basement.

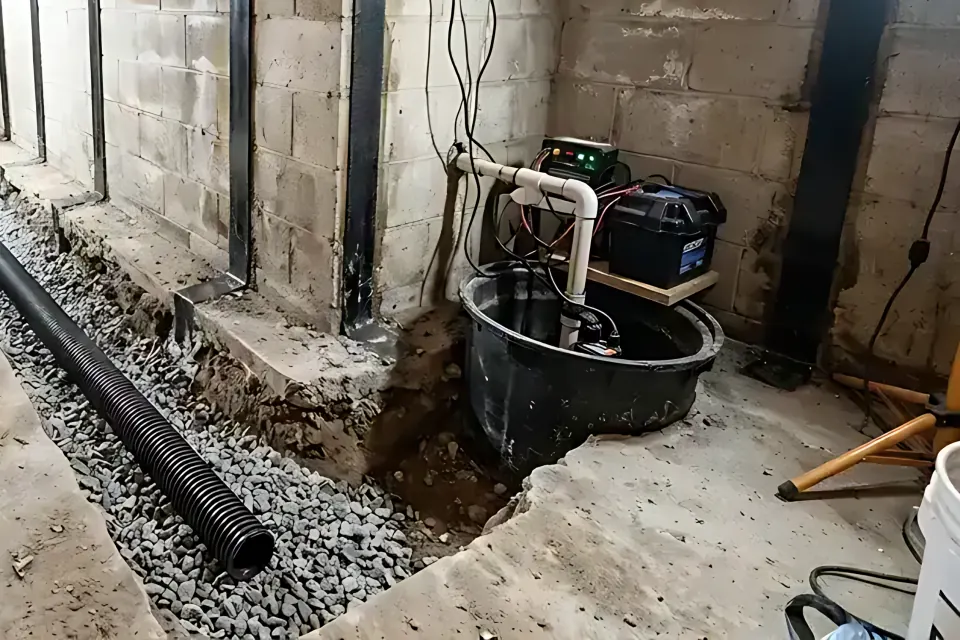

Hire an independent PE ($500–$900) first
Before approving $15,000 in foundation piers, hire a licensed independent structural engineer who does not sell piers to specify exact pier locations and spacing.
Before you sign a quote or file a claim, verify these three details
- Independent engineer
- Whether pier or wall-anchor counts come from a licensed Professional Engineer (PE) rather than a commissioned salesperson
- Breakout & concrete
- Whether interior drain quotes include jackhammering the slab perimeter, washed gravel, dimple board and re-pouring concrete
- Transferable warranty
- Whether pier warranties cover further settlement and transfer to the next buyer if you sell the home
On this page
- Cost by repair method
- What insurance covers vs excludes
- Foundation waterproofing cost by region
- What “Waterproofing / drainage system” does to the price
- What “Structural stabilization (piers or wall straps)” does to the price
- How age changes the foundation waterproofing claim payout
- Quote checklist: 7 items to verify
- How long the job takes
- Ways to keep the cost down
- Sources and further reading
- Frequently asked questions
Foundation repair and basement waterproofing cost by method (2026)
Before signing a waterproofing or foundation contract, confirm whether the problem starts outside at the roof line. Extending downspouts 10 feet away from the foundation and re-grading negative yard slope ($600 to $2,200) resolves nearly half of minor basement dampness complaints without jackhammering the slab.
| Repair System | Unit Rate (2026) | Typical Project Total | When It Is Used |
|---|---|---|---|
| Epoxy / Polyurethane Crack Injection | $450 – $950 / crack | $900 – $2,800 | Non-structural vertical shrinkage cracks in poured concrete walls |
| Interior French Drain + Sump Pump | $65 – $135 / linear ft | $5,200 – $10,800 (80 lf) | Groundwater entering at the floor-wall cove joint or block cores |
| Carbon-Fiber Wall Straps / Steel I-Beams | $600 – $1,350 / strap | $4,200 – $9,500 (6–8 straps) | Basement walls bowing inward less than 2 inches from soil pressure |
| Steel Push Piers or Helical Piers | $1,400 – $2,800 / pier | $11,200 – $22,400 (8 piers) | Settling or sinking footings over expansive clay or unconsolidated fill |
| Exterior Excavation & Membrane | $150 – $320 / linear ft | $12,000 – $25,600 (80 lf) | Severe exterior wall deterioration requiring full excavation to footing |
Does homeowners insurance cover foundation repair or basement waterproofing?
Standard HO-3 homeowners insurance policies contain two broad exclusions: the Earth Movement Exclusion (settling, shrinking, bulging, expansive clay soil, and frost heave) and the Surface / Subsurface Water Exclusion (hydrostatic groundwater pressure seeping through foundation walls or slab joints). However, three critical exceptions may provide coverage:
- Water & Sewer Backup Endorsement: If your sump pump fails or a municipal storm/sanitary sewer backs up through a basement floor drain, a Water Backup endorsement ($5,000 to $25,000 limit) covers the interior water damage mitigation and finished basement tear-out.
- Sudden Plumbing Leak Under Slab (Tear-Out Coverage): If a pressurized domestic supply line bursts under a concrete slab, standard policies cover the cost of breaking open and re-pouring the concrete slab section needed to access the pipe (though not the corroded pipe itself).
- Collapse or Vehicle / Tree Impact: Foundation damage directly caused by a falling tree, vehicle impact, explosion, or covered plumbing-induced collapse is evaluated under Coverage A Dwelling.
How to read foundation cracks and basement water entry before calling a contractor
Foundation and waterproofing companies often send commissioned estimators whose primary product is either an interior perimeter drain or steel piers. Understanding what different crack patterns and moisture signs mean helps you verify whether the proposed repair matches the actual physics of the problem:
| Visible Symptom | Typical Root Cause | Appropriate Fix | 2026 Typical Cost |
|---|---|---|---|
| Vertical hairline crack (<1/8") in poured concrete wall | Normal concrete curing shrinkage; leaks only during heavy rain | Low-pressure polyurethane or epoxy injection from inside | $450 – $950 per crack |
| Water seeping at the floor-wall cove joint around perimeter | Hydrostatic water table rising under the slab and footing | Interior sub-slab French drain tile + sump pump with backup | $5,200 – $10,800 (80 lf) |
| Horizontal crack mid-height on a CMU block wall with inward bow | Lateral clay soil expansion or frost pressure pushing the wall in | Carbon-fiber kevlar straps (if bow <2") or steel I-beams / earth anchors | $4,200 – $9,500 (6–8 braces) |
| Diagonal stair-step cracks in brick/block + sticking upstairs doors | Vertical differential settlement of one footing section | Hydraulic steel push piers or helical torque piers + gutter drainage fix | $11,200 – $22,400 (8 piers) |
Why $1,200 in gutter and grading work should always come before a $15,000 pier quote
A 2,000 sq ft roof sheds 1,250 gallons of water during a single 1-inch rainstorm. If a downspout dumps that water right at the foundation corner—or if the soil around the house has settled so it slopes toward the basement wall—the saturated clay swells and softens under the footing. Before approving interior jackhammering or structural piers (unless an independent Professional Engineer confirms active structural movement), make sure your gutters are clean, downspouts discharge 6 to 10 feet past the foundation wall via buried solid PVC pipe, and the first 6 feet of soil drops at least 6 inches away from the house.
Worked example: eight piers, or stop the water first
Pier prices are the ones published above. The rain figure is too: a 2,000 sq ft roof sheds about 1,250 gallons in a 1-inch storm. If that water dumps at the footing, the pier bid may be treating a drainage problem.
One settling wall, then the rain that feeds it
Worked example| 8 steel or helical piers at $1,400 | $11,200 |
| 8 piers at $2,800 | $22,400 |
| Published band including engineering and permits | $9,500 – $24,000 |
| Interior drain, 80 ft at $65 – $135 | $5,200 – $10,800 |
| Sump pump and battery backup | $1,200 – $2,600 |
| Drain the water before you buy piers | Check slope and downspouts |
Downspouts should discharge 6 to 10 feet past the wall, and the first 6 feet of soil should drop at least 6 inches. Expansive clay in a wet climate is the usual reason a pier job is even quoted. A standard HO-3 policy does not pay for earth movement or groundwater. This is a planning sketch, not an engineering design.
Foundation waterproofing cost by region
The calculator's default foundation waterproofing job, repriced for each of its six regions. At the national average it runs $7,340 – $13,800; South / Lower Midwest is the lowest at $6,444 – $12,156, and West Coast metro is the highest at $9,407 – $17,595, a gap of about $4,201 at the midpoint.
| Region | Planning range | Midpoint |
|---|---|---|
| National average | $7,340 – $13,800 | $10,570 |
| South / Lower Midwest | $6,444 – $12,156 | $9,300 |
| Mountain / Plains | $6,996 – $13,168 | $10,082 |
| Mid-Atlantic / Upper Midwest | $8,167 – $15,318 | $11,742 |
| Northeast metro | $9,131 – $17,089 | $13,110 |
| West Coast metro | $9,407 – $17,595 | $13,501 |
What “Waterproofing / drainage system” does to the price
Every other input stays at its default and only “Waterproofing / drainage system” changes. The cheapest choice, None (structural piers or wall straps only), comes to $1,900 – $3,800; the most expensive, Exterior foundation excavation & waterproof membrane, comes to $14,300 – $28,600.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| Interior sub-slab French drain & wall flange (default) | $7,340 – $13,800 | — |
| Exterior foundation excavation & waterproof membrane | $14,300 – $28,600 | +$10,880 |
| Crawlspace drainage & heavy vapor encapsulation | $6,300 – $13,000 | −$920 |
| None (structural piers or wall straps only) | $1,900 – $3,800 | −$7,720 |
What “Structural stabilization (piers or wall straps)” does to the price
Every other input stays at its default and only “Structural stabilization (piers or wall straps)” changes. The cheapest choice, No structural piers or wall straps needed, comes to $7,340 – $13,800; the most expensive, Hydraulic steel push piers or helical piers ($1,450–$2,750 ea), comes to $16,040 – $30,300.
| Choice | Planning range | Midpoint vs default |
|---|---|---|
| No structural piers or wall straps needed (default) | $7,340 – $13,800 | — |
| Carbon-fiber straps / steel I-beams for bowing wall ($650–$1,300 ea) | $11,240 – $21,600 | +$5,850 |
| Hydraulic steel push piers or helical piers ($1,450–$2,750 ea) | $16,040 – $30,300 | +$12,600 |
How age changes the foundation waterproofing claim payout
Using the default job, a $2,000 deductible and a 35-year expected life. At 10 years old, about $3,020 is held back as depreciation; a replacement cost policy releases it after the work is finished, while an actual cash value policy keeps it.
| Age | Wear | First check | Held back |
|---|---|---|---|
| 2 years | 6% | $7,966 | $604 |
| 5 years | 14% | $7,060 | $1,510 |
| 10 years | 29% | $5,550 | $3,020 |
| 15 years | 43% | $4,040 | $4,530 |
| 20 years | 57% | $2,530 | $6,040 |
| 30 years | 80% | $114 | $8,456 |
Quote checklist: 7 items to verify
Foundation quotes vary widely, so compare scope and warranty, not only price.
- Diagnosis. Cause of water or movement.
- System and length. Interior drain, exterior membrane, braces or piers, with feet or counts.
- Sump and discharge. Pump, backup and outlet.
- Engineering. Engineer's letter for structural work.
- Permit. Where required.
- Restoration. Slab patch, landscaping and haul-away.
- Warranty. Transferable and what it covers.
How long the job takes
| Stage | Typical time | What happens |
|---|---|---|
| Inspection | 1 – 2 hours | Water and cracks evaluated. |
| Engineering and permit | 1 – 4 weeks | For structural work. |
| Interior drain | 1 – 3 days | Typical basement. |
| Exterior or pier work | 3 – 10 days | Excavation and installation. |
| Monitoring | Next heavy rain | Check the system is working. |
Fix gutters and grading first; many wet basements improve without any foundation work.
Ways to keep the cost down
Foundation costs depend on the cause and the fix.
- Fix gutters and grading. Cheapest fix.
- Seal single cracks. Injection.
- Get an engineer's opinion. Right fix.
- Compare systems. Interior or exterior.
- Ask about warranties. Transferable.
- Act early. Smaller repairs.
Sources and further reading
- EPA — A brief guide to mold, moisture and your home
- FEMA — What flood insurance covers in a basement
- InterNACHI — Life expectancy of home components
Frequently asked questions
How much does interior basement waterproofing cost per linear foot?
An interior sub-slab perimeter drainage system (jackhammering a 12-inch trench inside the footing, installing perforated PVC pipe in washed stone, adding wall vapor flange, and re-pouring concrete) typically costs $65 to $135 per linear foot, plus $1,200 to $2,600 for a cast-iron sump pump and battery backup.
How much do foundation steel push piers or helical piers cost?
Installed steel push piers or helical torque piers generally run $1,400 to $2,800 per pier in 2026. Because piers are spaced every 6 to 8 feet along the settling wall section, stabilizing one corner or side of a house (6 to 10 piers) typically totals $9,500 to $24,000 including engineering and permits.
Should I hire a structural engineer before calling a foundation repair company?
Yes. Paying $500 to $900 for an independent licensed Professional Engineer (PE) who has no financial stake in selling piers or waterproofing systems is the single best money saver in foundation repair. Independent engineers frequently find that gutter extensions and grading—or 4 piers instead of 14—solve the problem.
Is interior French drainage better than exterior foundation waterproofing?
Exterior excavation stops water before it touches the wall, but digging 8 feet down around a finished house requires removing decks, AC pads, porches and landscaping at $150 to $320 per linear foot. Interior perimeter drain tile ($65 to $135 per linear foot) intercepts water at the footing without disturbing the yard and is the industry standard for existing homes.
Does homeowners insurance cover a bowing basement wall or foundation crack?
No. Standard homeowners insurance excludes earth movement, soil pressure, frost heave, and gradual foundation settling. Coverage only applies if the structural damage was directly caused by a covered peril such as a vehicle strike, explosion, or a sudden covered plumbing burst.
How do I know if a crack is serious?
Cracks wider than about a quarter inch, cracks that keep growing, stair-step cracks in block, bowing walls and sticking doors are reasons to call a structural engineer.
Do foundation repairs need permits?
Structural repairs such as piers and wall bracing often need permits and engineering.
Related planning tools
Next steps for your estimate
The next questions after a foundation repair and basement waterproofing estimate usually land on one of these.
Water damage restoration calculator
Estimate drying, flood cuts, subfloor repair and mold remediation after a leak.
Gutter & downspout cost calculator
Keep roof runoff away from your foundation with 6-inch gutters and extensions.
Flooring replacement cost calculator
Price waterproof luxury vinyl plank (LVP) or tile for a basement remodel.
Should I file a claim?
Check whether a sump backup or plumbing leak claim exceeds your deductible and surcharge risk.
Home rebuild cost calculator
See how foundation type (basement vs slab vs crawlspace) affects Coverage A limits.
Driveway & concrete replacement calculator
Price exterior concrete slab replacement and apron grading beside the house.
French drain calculatorStop yard water before it reaches the wall.Crawl space encapsulation calculatorVapor barrier, dehumidifier and joist repair.Concrete leveling calculatorSunken walks and patios next to the house.
Key topics covered
Common questions answered on this page
Direct planning topics covered in the calculator and guide above.
foundation repair cost calculatorbasement waterproofing cost per linear footinterior french drain and sump pump coststeel push piers vs helical piers costbowing basement wall carbon fiber straps costexterior foundation waterproofing membrane costdoes homeowners insurance cover foundation repaircrawlspace encapsulation and drainage cost
basement foundation cost calculatorprice for waterproofing basementbasement waterproofing costunderpinning cost calculatorfoundation water damage repair costfoundation leak repair costbasement reinforcement costbasement waterproofing free estimatebasement encapsulation costfoundation waterproofing services costhow much does basement waterproofing costcove joint seepage repair cost
